Plan No.241970

All plans have the following as a part of every plan; Slab foundation is standard (crawl space and basement foundations are available for an additional fee of $195.00 each), 2 x 4 stud construction exterior walls standard (2x6 option $195.00), common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans files are emailed to the customer in PDF or CAD (Softplan, DWG or DXF) format. All plans are Unlimited Build. ADDITIONAL INFORMATION: Master Closet – 2 x 6, Master Bath – 8 x 5, Bathroom 2 – 7-4 x 5, Pantry – 5 x 4-4.

Specifications

Total 791 sq ft

  • Main: 791
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: none
  • Width: 29'8
  • Depth: 26'8

Roof

  • Max Ridge Height: 15'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6/12
  • Secondary Pitch: 6/12

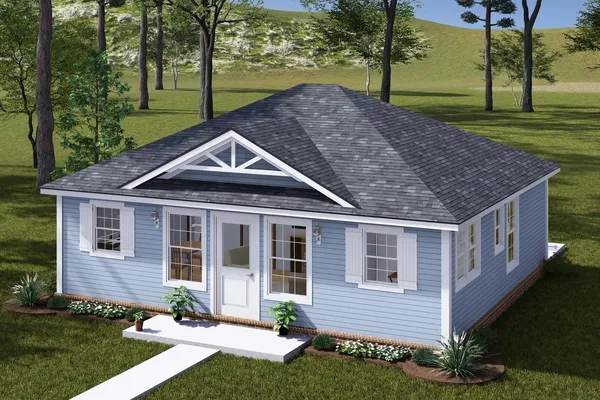

Full Rendering – westhomeplanners.com

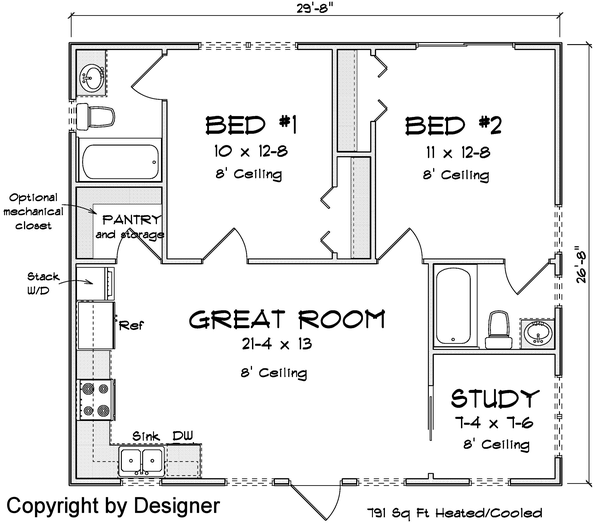

MAIN Plan – westhomeplanners.com

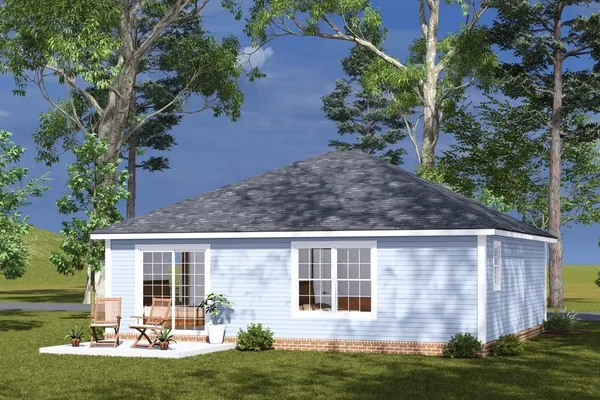

Right & Rear – westhomeplanners.com

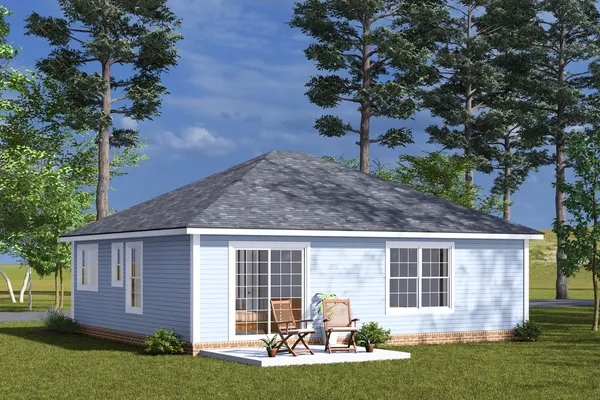

Rear & Left – westhomeplanners.com

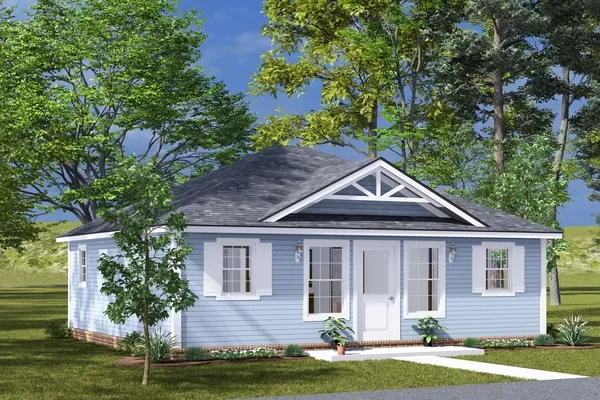

Front & Left – westhomeplanners.com
Front & Right – westhomeplanners.com

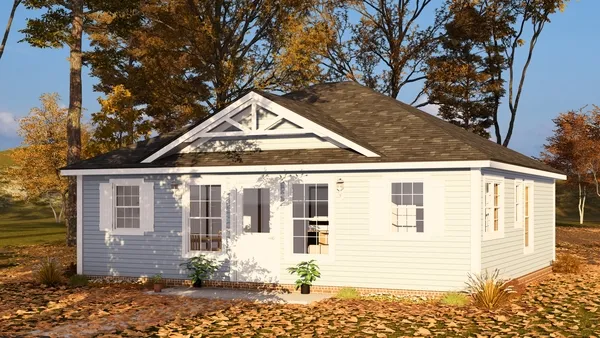

Sunset – westhomeplanners.com

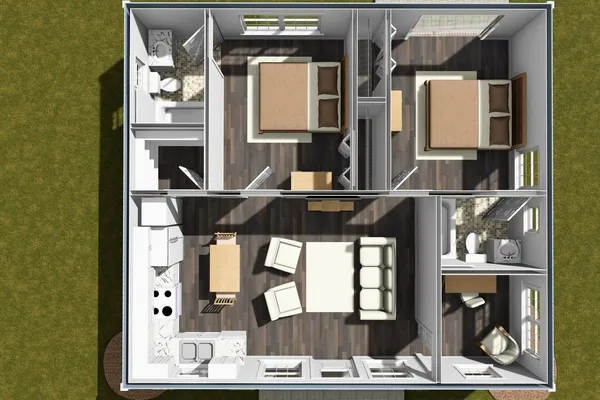

3D Floor Plan – westhomeplanners.com
