Plan No.692591

Single Build License issued on CAD File orders. See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order. Materials List may take 3-5 weeks to fulfill depending on availability.

Specifications

Total 1952 sq ft

  • Main: 1376
  • Second: 576
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1166
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0+
  • Second: 10'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: none
  • Width: 53'0
  • Depth: 38'0

Roof

  • Max Ridge Height: 26'10
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

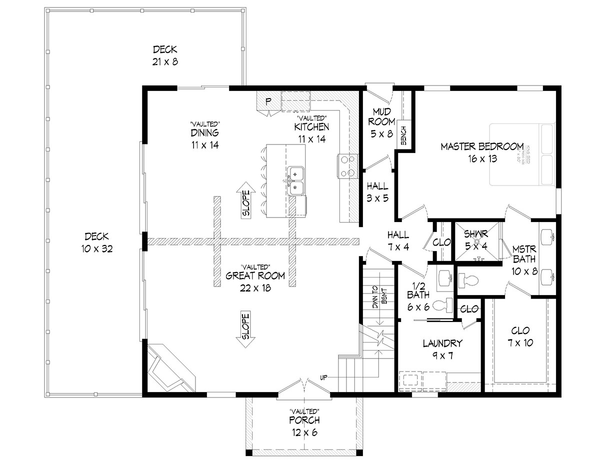

MAIN Plan – westhomeplanners.com

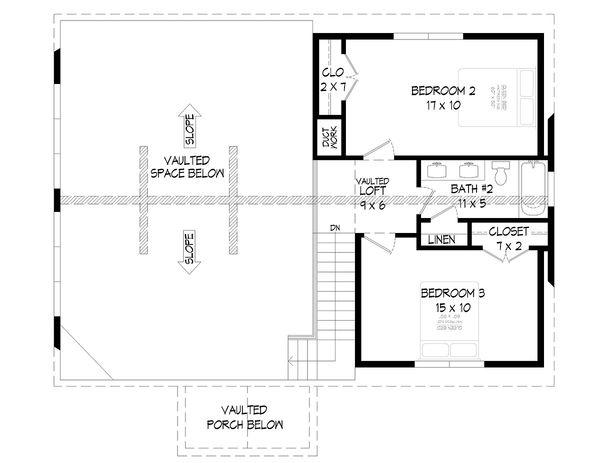

SECOND Plan – westhomeplanners.com

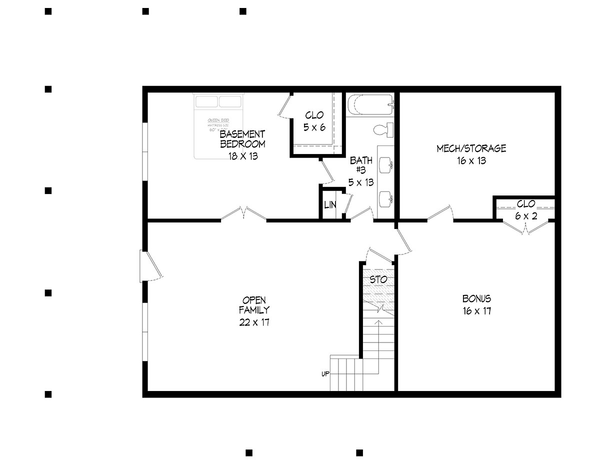

BASEMENT Plan – westhomeplanners.com

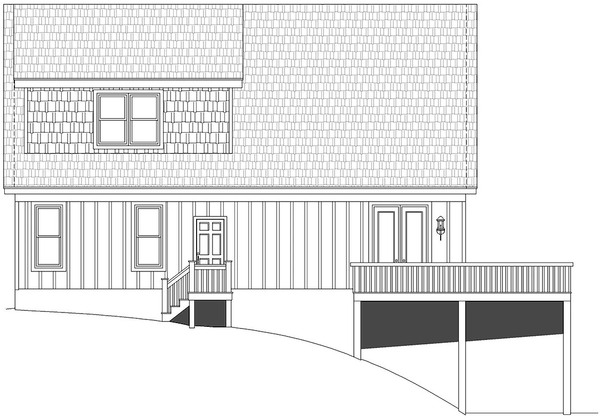

REAR Elevation – westhomeplanners.com

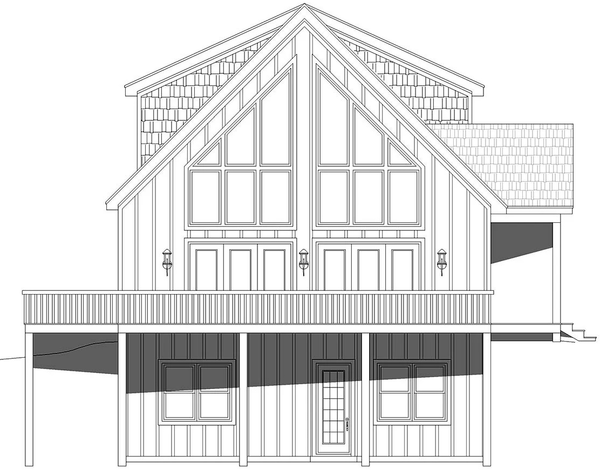

LEFT Elevation – westhomeplanners.com

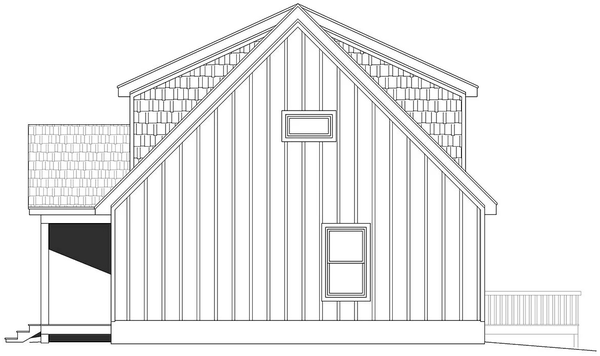

RIGHT Elevation – westhomeplanners.com

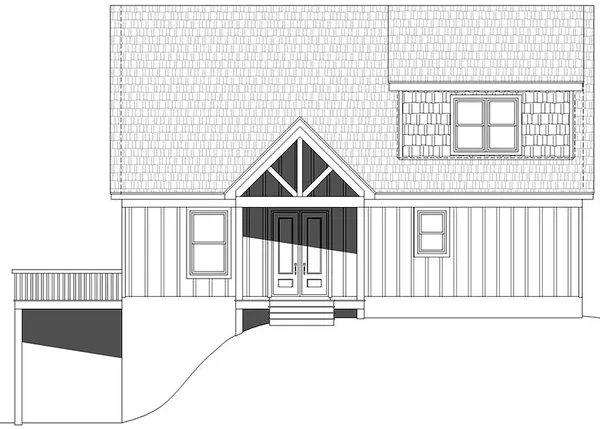

FRONT Elevation – westhomeplanners.com
