Plan No.593422

Narrow Lot ICF House Plan with Future In-Law Suite

This narrow lot ICF house plan combines all the spaces that you expect in a 26 foot wide foot-print. 3 comfortable bedrooms, 2 full baths, future 593 sq.ft. in-law suite and front facing double garage! This home has been skillfully designed by an award winning North American design firm to be energy efficient in both hot and cold climates as well as to minimize material waste during construction.

Specifications

Total 2243 sq ft

  • Main: 898
  • Second: 1345
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 530

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: ICF
  • Garage Type: 2 Car Garage
  • Width: 26'0
  • Depth: 66'0

Roof

  • Max Ridge Height: 25'3
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 5/12
  • Secondary Pitch: 4/12

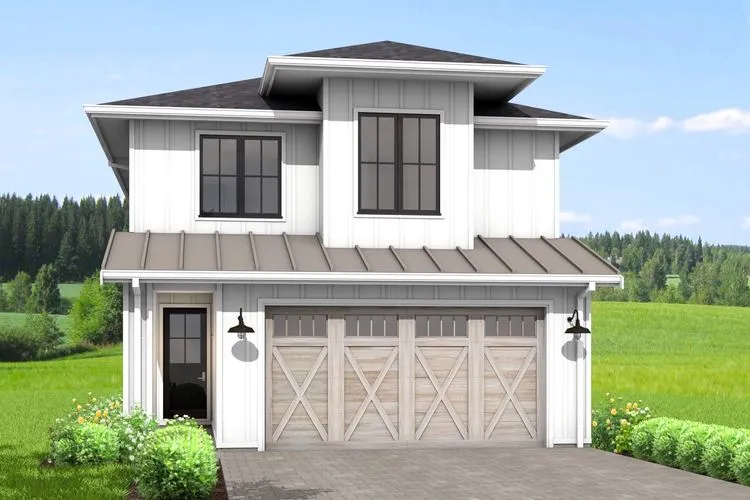

Full Rendering – westhomeplanners.com

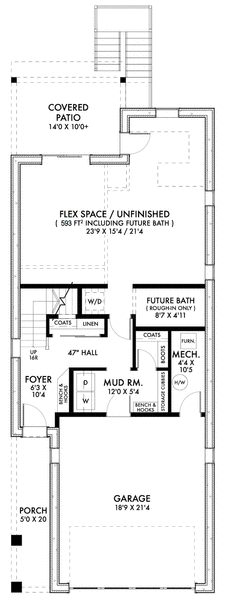

MAIN Plan – westhomeplanners.com

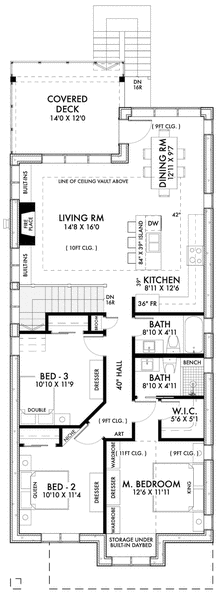

SECOND Plan – westhomeplanners.com

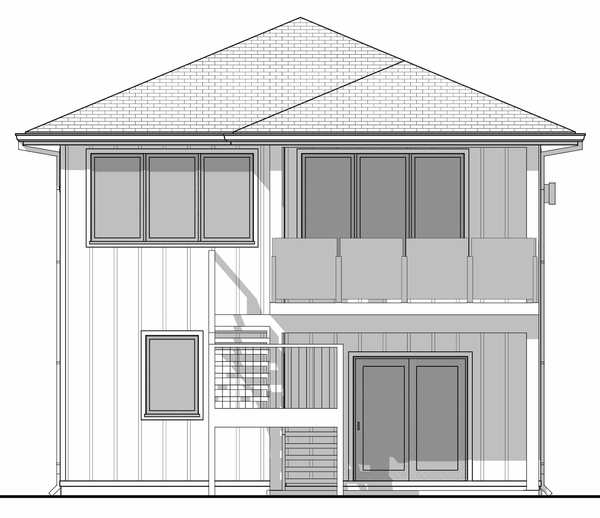

REAR Elevation – westhomeplanners.com

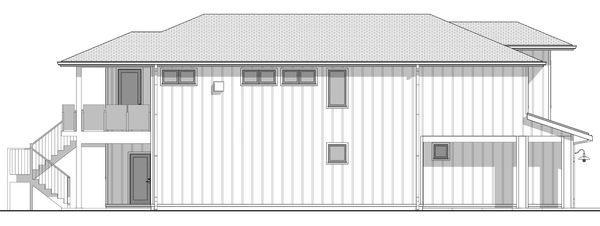

LEFT Elevation – westhomeplanners.com

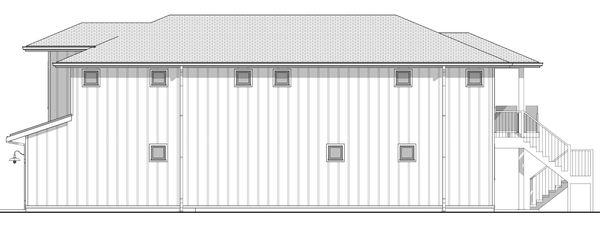

RIGHT Elevation – westhomeplanners.com

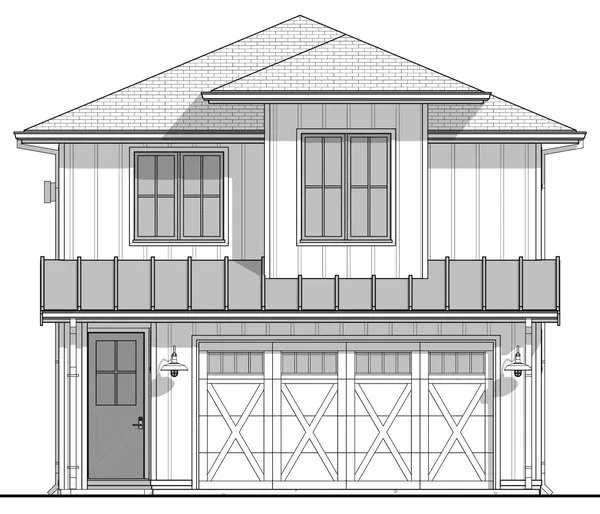

FRONT Elevation – westhomeplanners.com
