Plan No.248003

Loaded With Features

All plans have the following as a part of every plan; Slab foundation is standard (crawl space and basement foundations are available for an additional fee of $195.00 each), 2 x 4 stud construction exterior walls standard (2x6 option $195.00), common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans files are emailed to the customer in PDF or CAD (DWG) format. ADDITIONAL ROOM SIZES: Master Closets – 10-8 x 6 & 6 x 5, Master Bath – 13 x 13, Foyer – 8 x 12, Utility Room – 14 x 6, Bathroom 2 – 5-4 x 5, Bathroom 3 – 5 x 9-4, Bathroom 4 – 8 x 8-2, Pantry – 4-4 x 4-4 and Kitchen Island – 4-6 x 9. EXTRA ROOMS OR FEATURES: Main Floor Master, split plan, open concept, Walk-in Attic, Study, His & Her’s closets.

Specifications

Total 3008 sq ft

  • Main: 2490
  • Second: 518
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 734

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 3 Car Garage
  • Width: 77'4
  • Depth: 61'0

Roof

  • Max Ridge Height: 30'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 8/12
Full Rendering – westhomeplanners.com

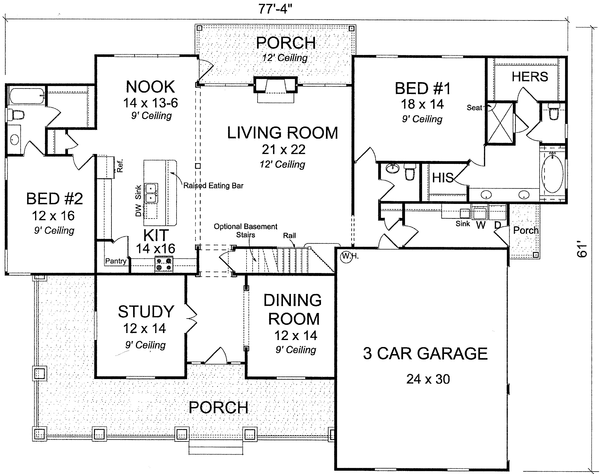

MAIN Plan – westhomeplanners.com

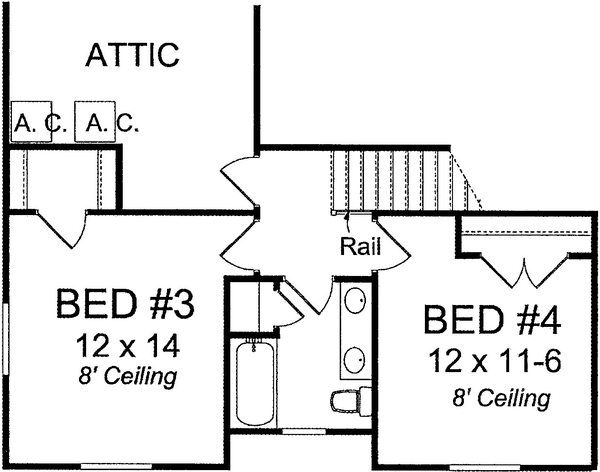

SECOND Plan – westhomeplanners.com
