Plan No.342783

Open-plan Design Fosters a Warm, Inclusive Atmosphere

Each side of this duplex spans two levels, incorporating three bedrooms, 2 1/2 baths ensuring ample space for both larger families and individuals seeking extra room for offices or guest rooms. The great room and kitchen share an open-plan design on the first floor, fostering a warm, inclusive atmosphere that is perfect for entertaining guests or family gatherings. Each unit has a Main Floor Area of 878 sq. ft. and a Second Floor Area of 1058 sq. ft. for a Total Area of 1936 sq. ft. per unit. Each unit features a 1 Car Garage of 286 sq. ft.

Specifications

Total 3872 sq ft

  • Main: 1756
  • Second: 2116
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 572

Rooms

  • Beds: 6
  • Baths: 4
  • 1/2 Bath: 2
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 52'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 25'7
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 3/12
  • Secondary Pitch: 0/12

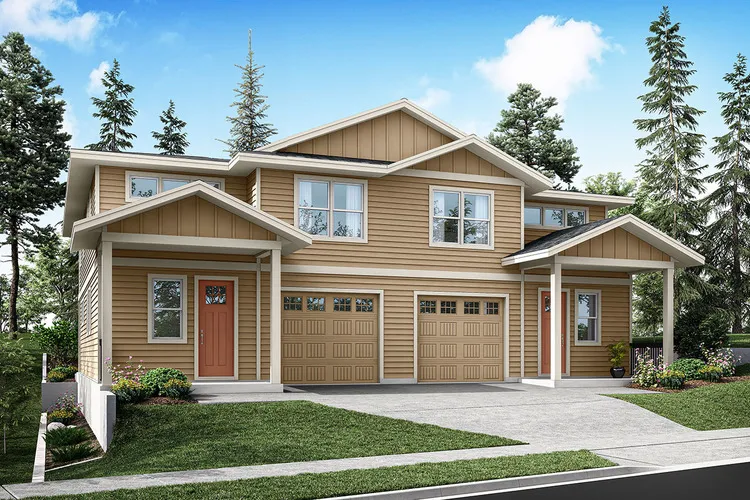

Full Rendering – westhomeplanners.com

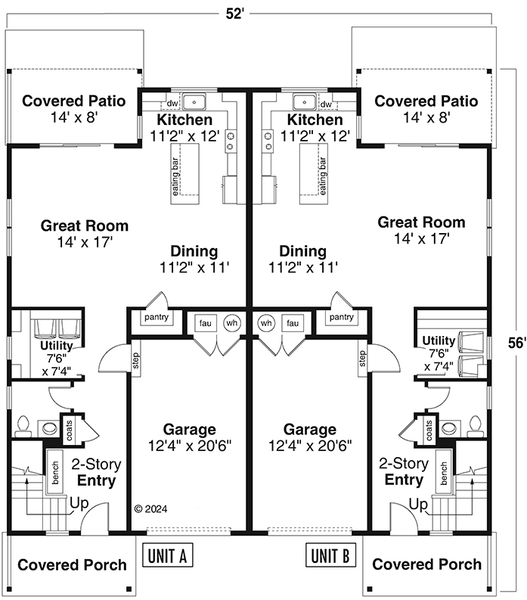

MAIN Plan – westhomeplanners.com

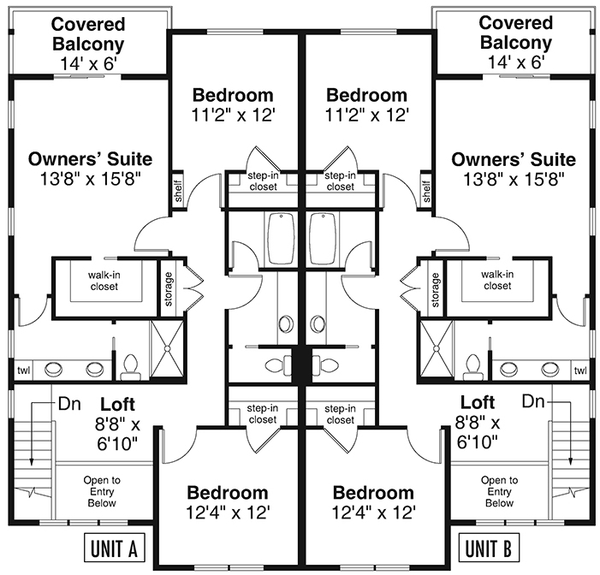

SECOND Plan – westhomeplanners.com

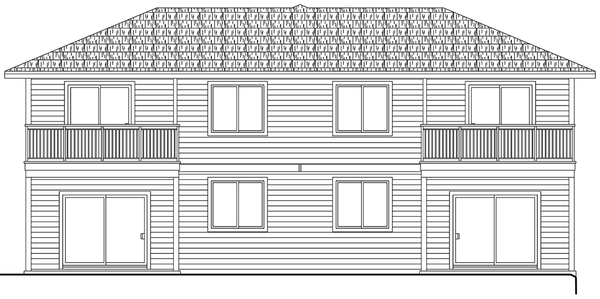

REAR Elevation – westhomeplanners.com

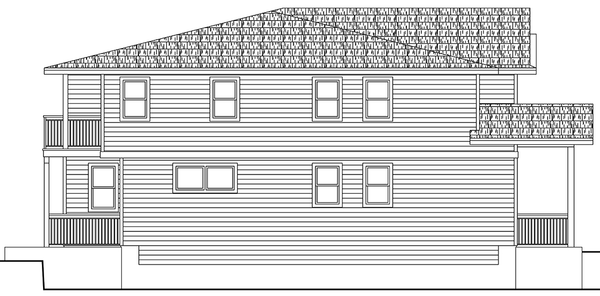

LEFT Elevation – westhomeplanners.com

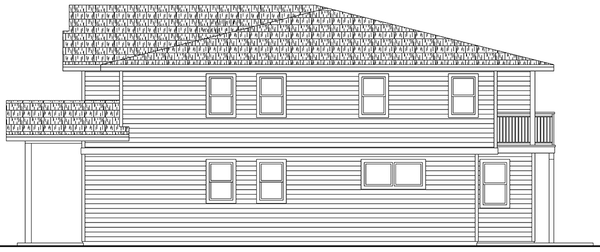

RIGHT Elevation – westhomeplanners.com
