Plan No.591331

Simple Garage Apartment Plan

This simple double garage apartment plan embraces simple forms to create a secondary suite for a dependable mortgage helper. Featuring 2 bedrooms, 1 bath, open living area and double garage spannable with 14” deep joists this plan is elegant for its simplicity.

Specifications

Total 1331 sq ft

  • Main: 154
  • Second: 641
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 536

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'0

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 29'0
  • Depth: 26'0

Roof

  • Max Ridge Height: 27'7
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

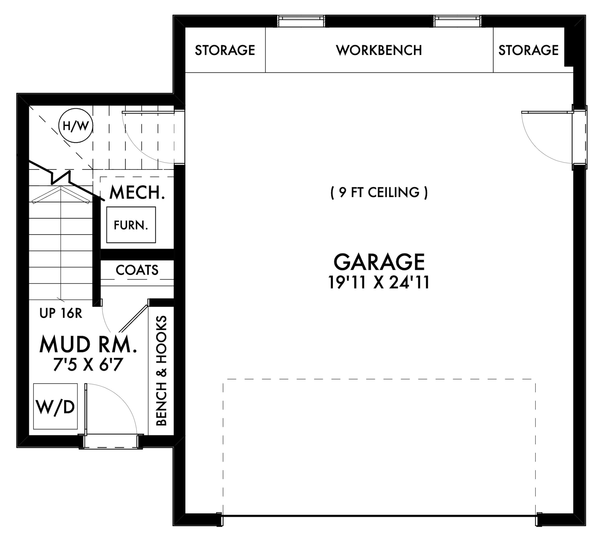

MAIN Plan – westhomeplanners.com

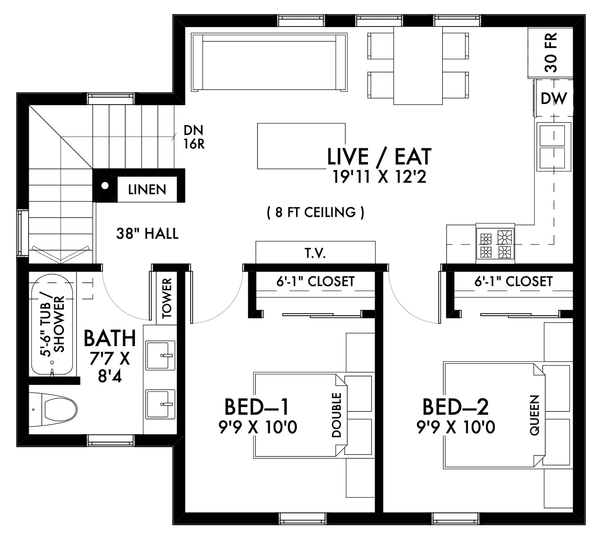

SECOND Plan – westhomeplanners.com
Night Rendering – westhomeplanners.com
Live / Eat – westhomeplanners.com

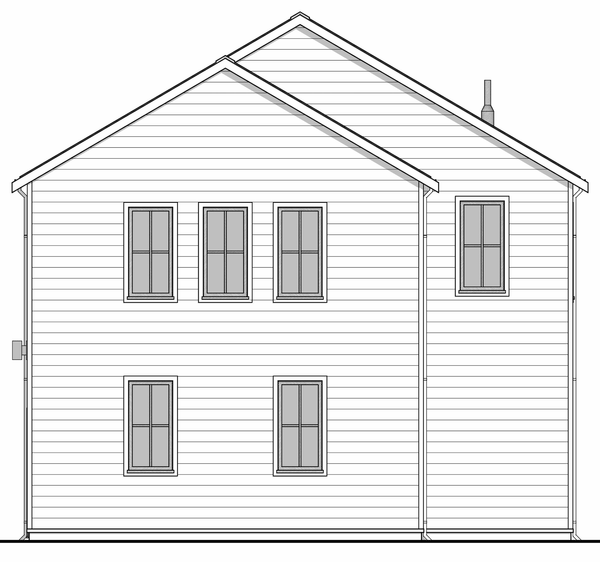

REAR Elevation – westhomeplanners.com

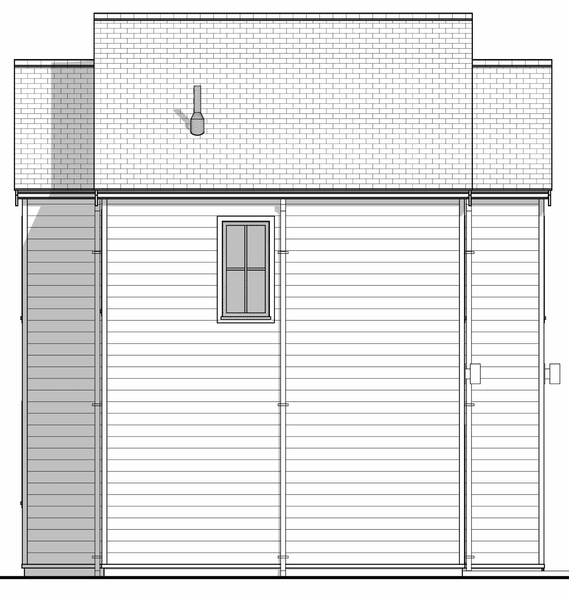

LEFT Elevation – westhomeplanners.com

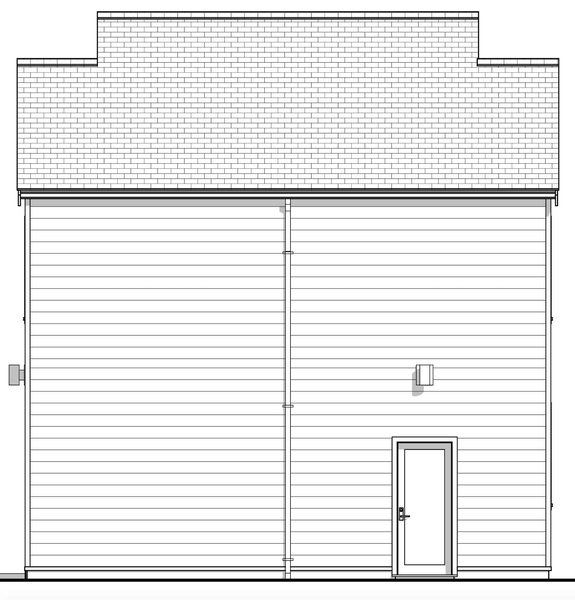

RIGHT Elevation – westhomeplanners.com

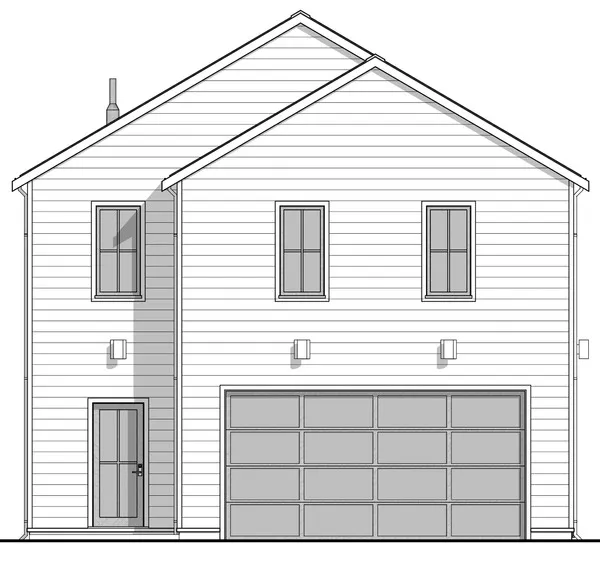

FRONT Elevation – westhomeplanners.com
