Plan No.778782

Mediterranean Style Great Room House Plan

This house plan features 3 bedroom, 3 bathrooms and a 3 car garage. Also included is an island kitchen, study and lanai. CEILING TYPES & HEIGHTS: Master Bedroom: double coffer / 12'/13'/14', Master Bath: coffer / 10'/11', Great Room: coffer-vault / 13',14'/15'-18', Dining Room: coffer w/beam / 13',14'/13'8", Dinette: coffered / 13' - 14', Kitchen: flat/soffit / 13'/12', Entry: flat / 16', Foyer: flat / 14', Study: coffer-beams / 13' - 14'/13'8", Bedroom 2: flat / 10', Bedroom 3: flat / 10', Baths: flat / 10', Lanai: flat / 12'. Building Restrictions: BUILDING RESTRICTIONS MAY APPLY IN LEE AND COLLIER COUNTY, FLORIDA. CONTACT US TO CONFIRM.

Specifications

Total 2878 sq ft

  • Main: 2878
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 877

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0-16'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: Block
  • Garage Type: 3 Car Garage
  • Width: 64'8
  • Depth: 92'8

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Floor to Roof Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com
MAIN Plan – westhomeplanners.com

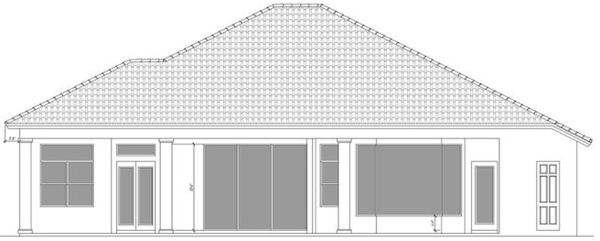

REAR Elevation – westhomeplanners.com
