Plan No.908672

Unlimited Build License issued on CAD File orders. Please note, the Bonus Room area of 452 sq. ft. is not included in the total square footage.

Specifications

Total 2768 sq ft

  • Main: 2768
  • Second: 0
  • Third: 0
  • Loft/Bonus: 452
  • Basement: 0
  • Garage: 716

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0-17'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 2 Car Garage
  • Width: 66'10
  • Depth: 91'4

Roof

  • Max Ridge Height: 26'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

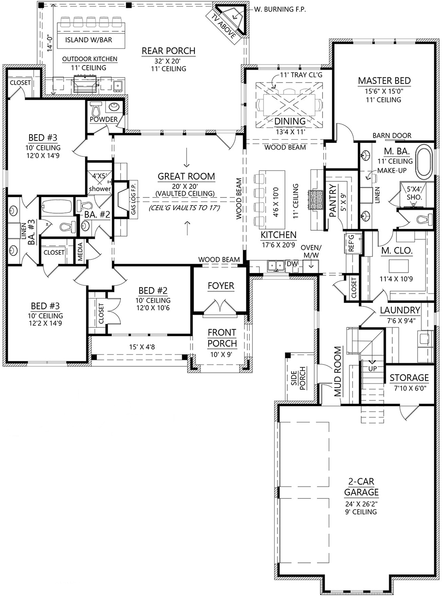

MAIN Plan – westhomeplanners.com

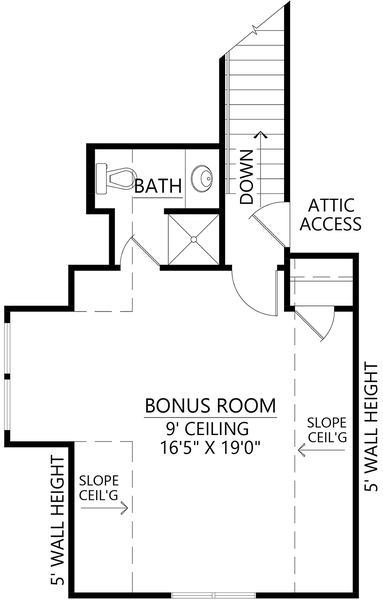

ATTIC Plan – westhomeplanners.com
 – westhomeplanners.com

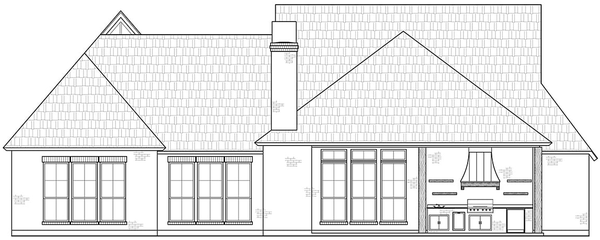

REAR Elevation – westhomeplanners.com
