Plan No.154684

Modern Duplex

This unforgettable 2-story duplex utilizes steel columns, numerous windows and exquisite masonry finishes in creating its unique visual appeal. The second-floor balcony, statement entry door, and contemporary lighting fixtures are perfect compliments. That balcony serves as a carport, while the garage’s extra depth offers storage. First- and second-floor suites make this an ideal layout for multi-generational households, particularly with the large upstairs loft for reading, play or study. EACH UNIT: Main Floor = 1005 sq. ft., Second Floor = 1427 sq. ft. TOTAL SQ. FT. PER UNIT = 2432 SQ. FT. with 4 bedrooms, 1 full bath, 1 3/4 bath and 1 half bath. Each unit has a 1 Car Garage.

Specifications

Total 4864 sq ft

  • Main: 2010
  • Second: 2854
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 481

Rooms

  • Beds: 8
  • Baths: 2
  • 1/2 Bath: 2
  • 3/4 Bath: 2

Ceiling Height

  • Main: 10'0
  • Second: 10'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 2 Car Garage
  • Width: 68'0
  • Depth: 53'0

Roof

  • Max Ridge Height: 29'9
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

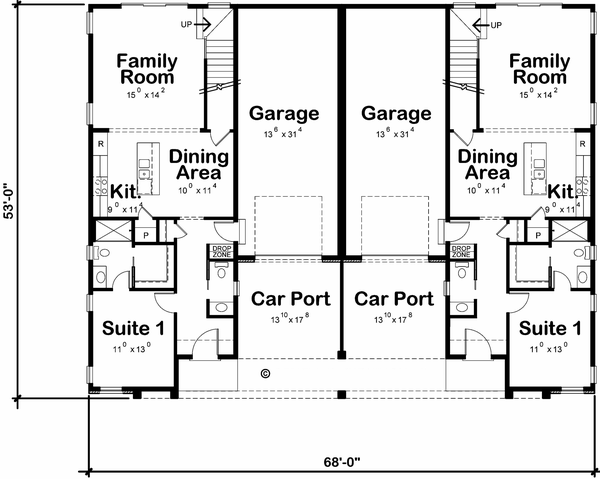

MAIN Plan – westhomeplanners.com

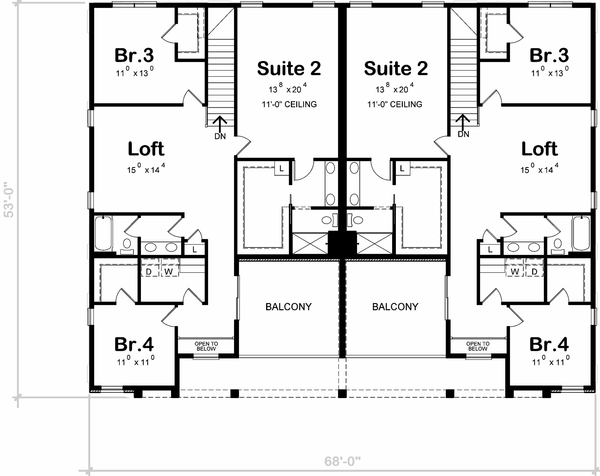

SECOND Plan – westhomeplanners.com

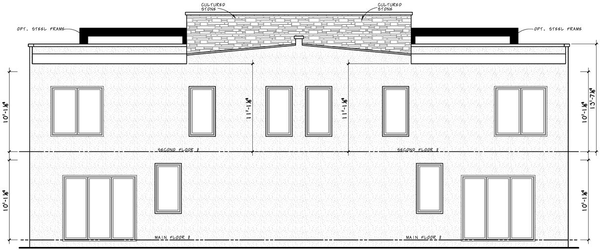

REAR Elevation – westhomeplanners.com

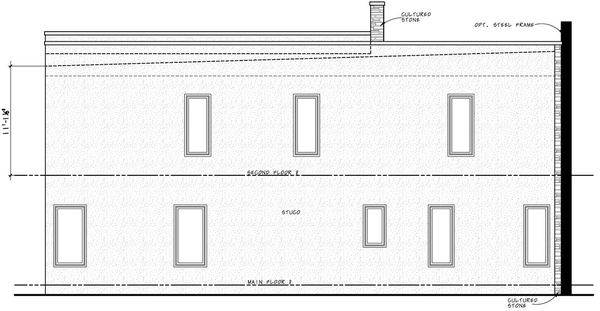

LEFT Elevation – westhomeplanners.com

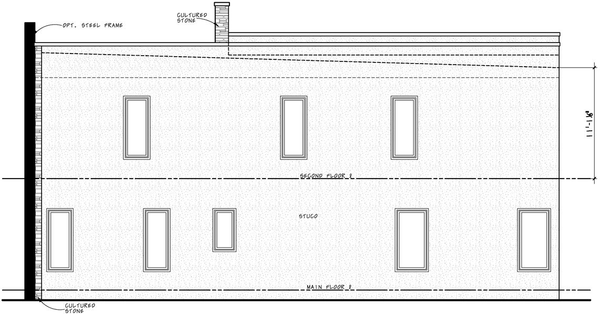

RIGHT Elevation – westhomeplanners.com
