Plan No.313284

Please note, the Bonus Room area is not included in the total square footage.

Specifications

Total 4823 sq ft

  • Main: 3611
  • Second: 1212
  • Third: 0
  • Loft/Bonus: 876
  • Basement: 0
  • Garage: 940

Rooms

  • Beds: 4
  • Baths: 4
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0
  • Second: 9'0
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 3 Car Garage
  • Width: 104'8
  • Depth: 77'2

Roof

  • Max Ridge Height: 43'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12

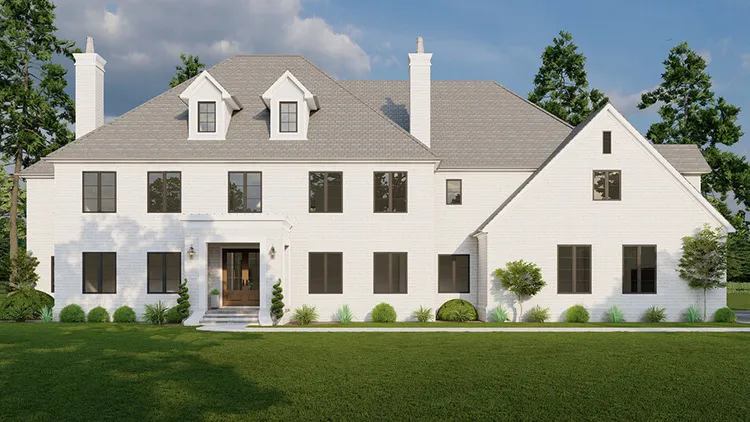

Full Rendering – westhomeplanners.com

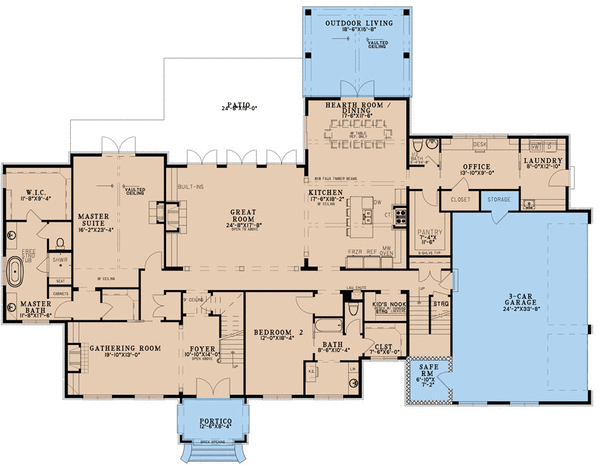

MAIN Plan – westhomeplanners.com

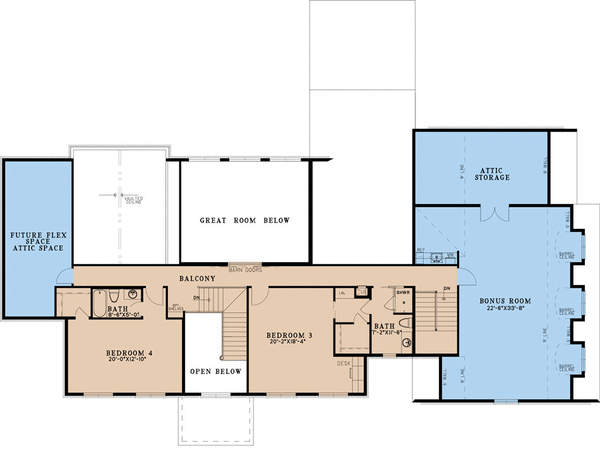

SECOND Plan – westhomeplanners.com

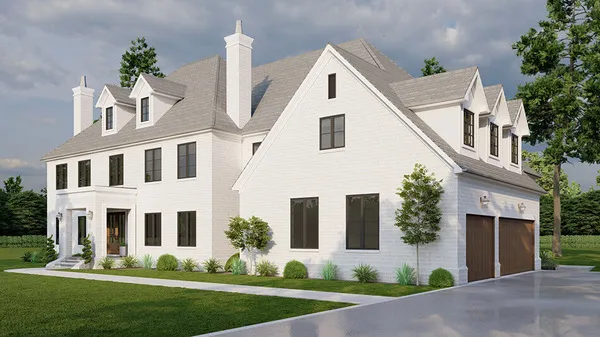

Front & Right – westhomeplanners.com

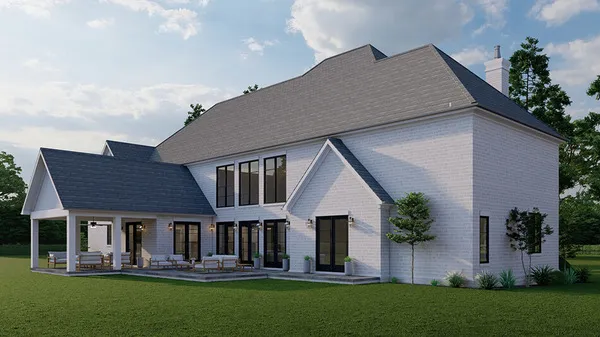

Rear & Left – westhomeplanners.com

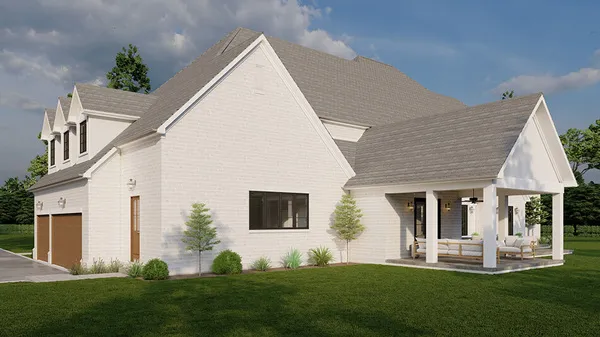

Rear & Right – westhomeplanners.com

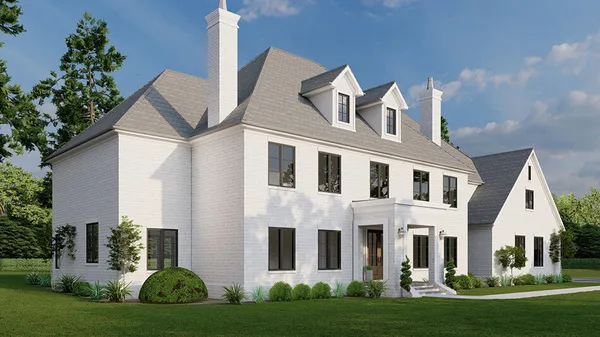

Front & Left – westhomeplanners.com
Dining – westhomeplanners.com
Great Rm to Kitchen – westhomeplanners.com

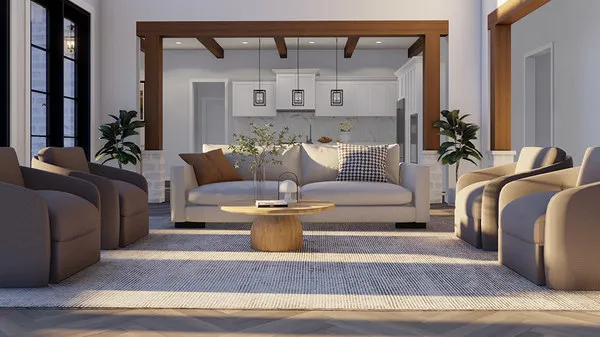

Great Room – westhomeplanners.com
Great Room – westhomeplanners.com
Kitchen – westhomeplanners.com
Kitchen – westhomeplanners.com

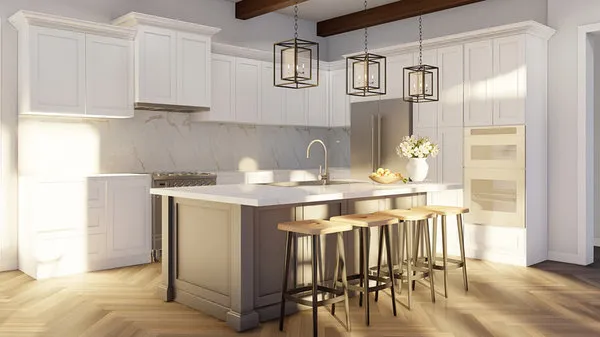

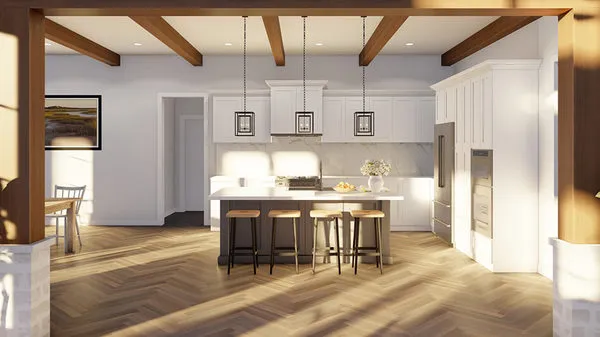

Kitchen Island – westhomeplanners.com
Kitchen to Great Room – westhomeplanners.com

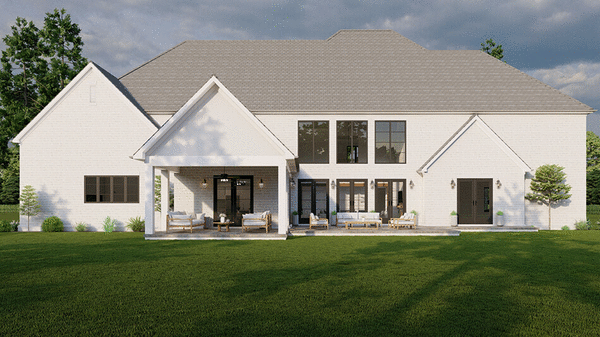

REAR Elevation – westhomeplanners.com

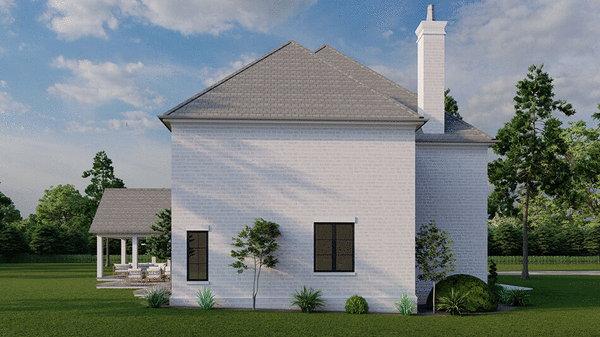

LEFT Elevation – westhomeplanners.com

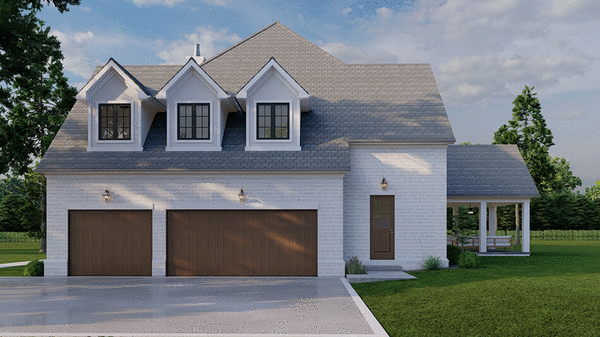

RIGHT Elevation – westhomeplanners.com
