Plan No.319612

Total Living Area may increase with Basement Foundation option. Unlimited Build License issued on CAD File orders. CAD files include a free PDF file.

Specifications

Total 2169 sq ft

  • Main: 2169
  • Second: 1220
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 984

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: 3 Car Garage
  • Width: 61'6
  • Depth: 93'10

Roof

  • Max Ridge Height: 28'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12

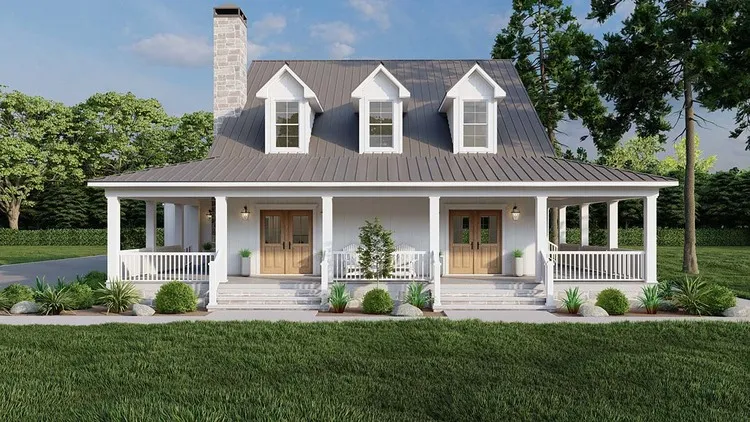

Full Rendering – westhomeplanners.com

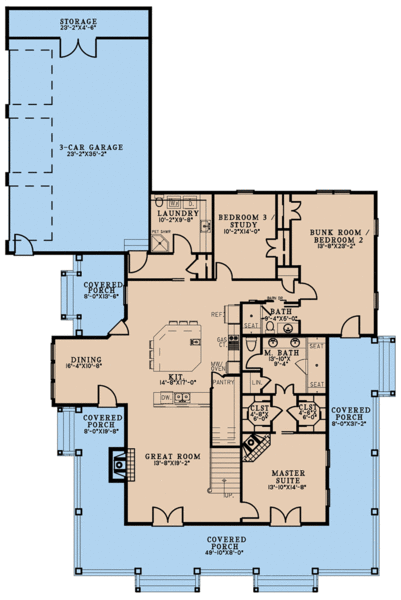

MAIN Plan – westhomeplanners.com

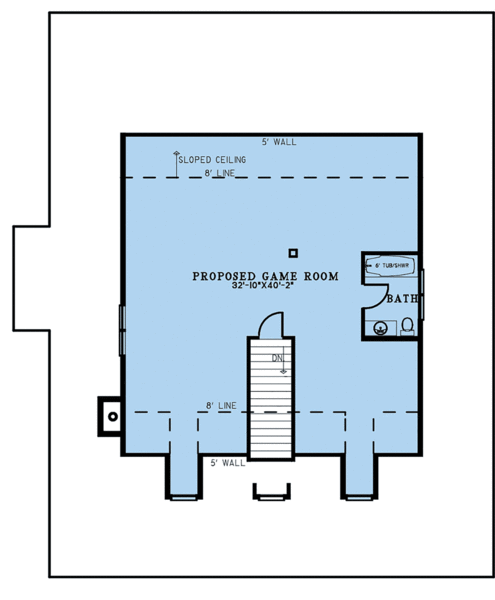

SECOND Plan – westhomeplanners.com

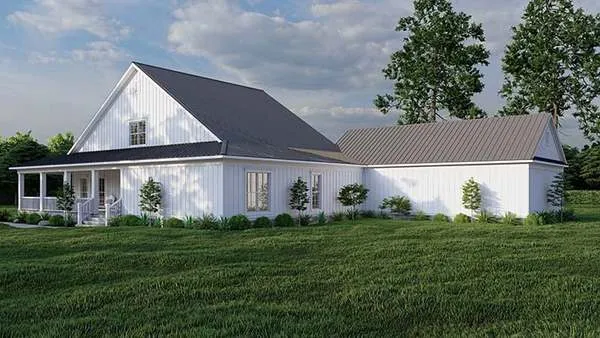

Rear & Right – westhomeplanners.com

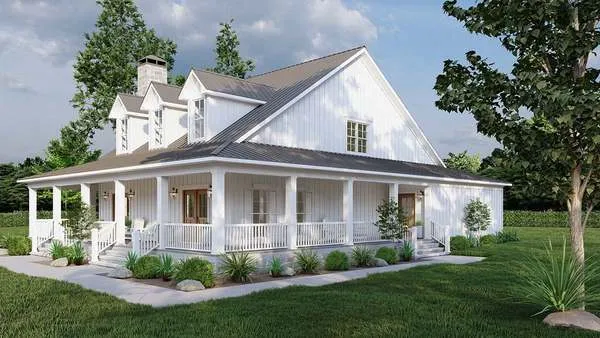

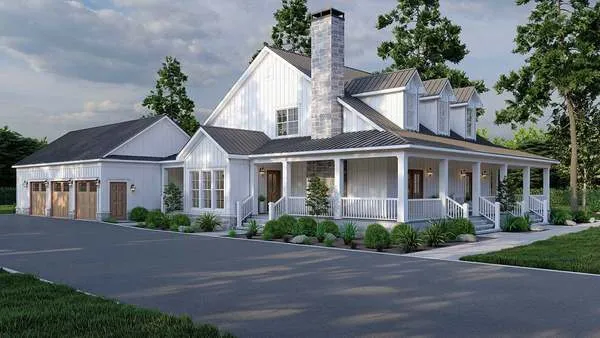

Front & Left – westhomeplanners.com
Front & Right – westhomeplanners.com

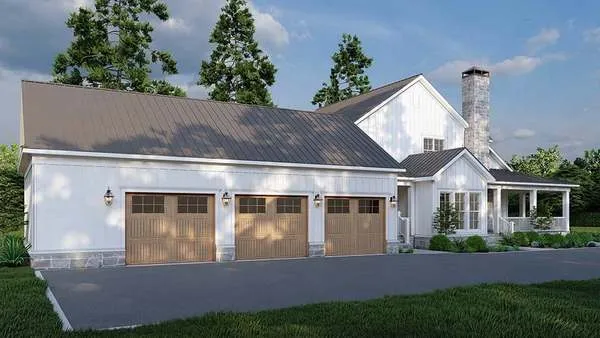

Right Side – westhomeplanners.com

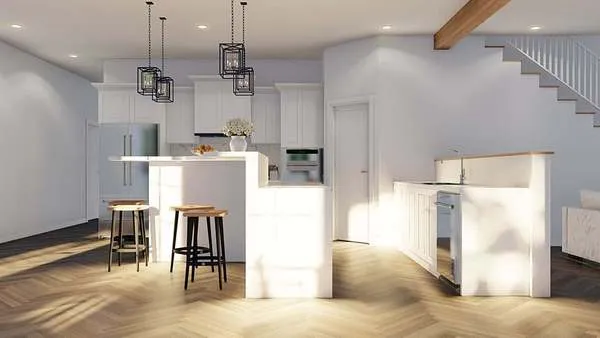

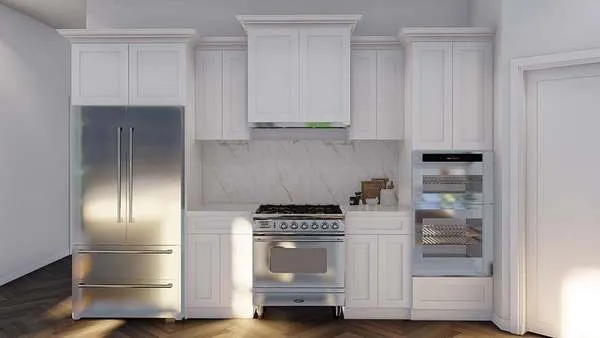

Kitchen – westhomeplanners.com

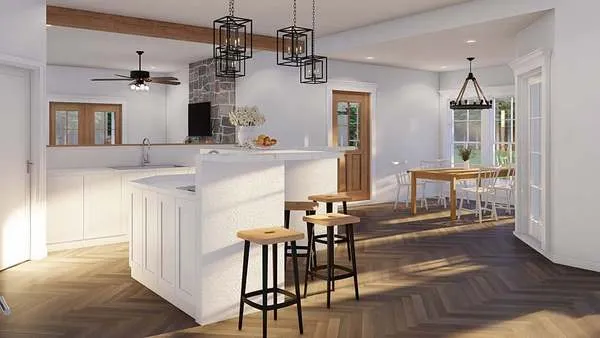

Kitchen to Dining – westhomeplanners.com
Kitchen from Dining – westhomeplanners.com

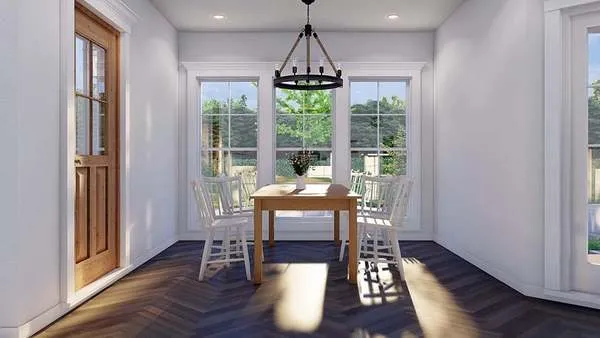

Dining – westhomeplanners.com

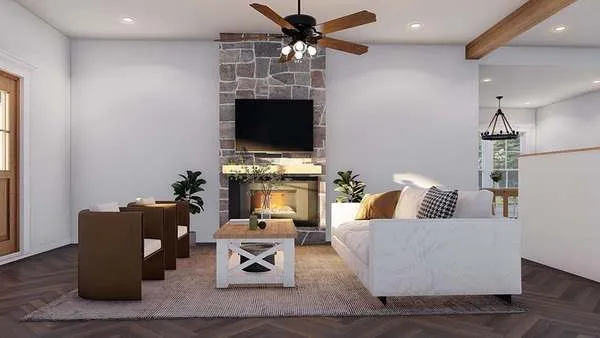

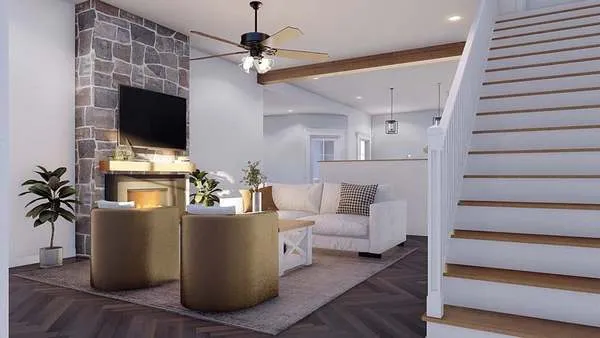

Great Room – westhomeplanners.com
Great Rm from Foyer – westhomeplanners.com

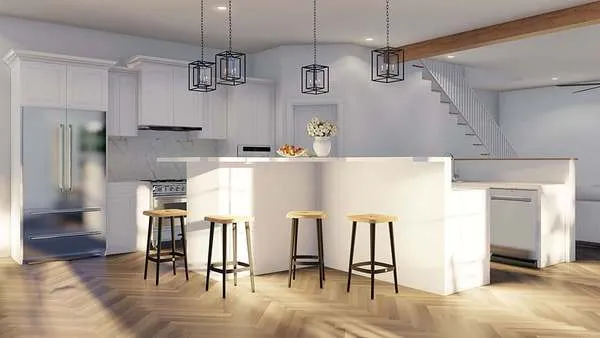

Kitchen Island – westhomeplanners.com

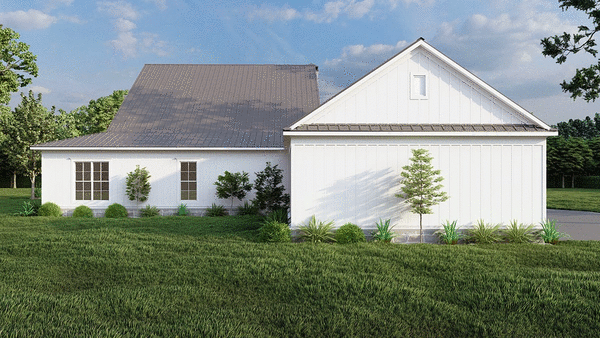

REAR Elevation – westhomeplanners.com

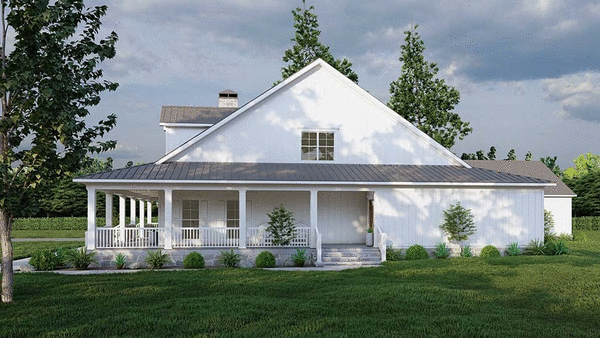

LEFT Elevation – westhomeplanners.com

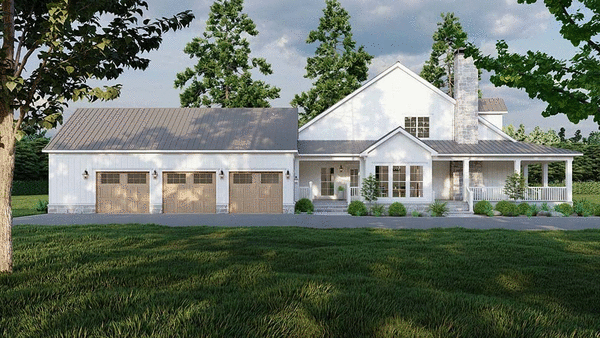

RIGHT Elevation – westhomeplanners.com
