Plan No.430902

Split Bedroom Layout For Privacy

The Great Room has a wood-burning fireplace with cabinetry for storage and is open from the arched double front doors to the French doors of the Country Kitchen. The open Country Kitchen has a huge island with plenty of storage and a counter-high snack bar for a casual lifestyle – perfect for entertaining family and friends. The Master Bedroom is large and contains a spa-style bath and large walk-in closet. The Master Bath has dual sinks, a free-standing tub, a large custom shower, and a linen closet – Step into the large walk-in closet with plenty of storage for his and her storage needs. The Laundry/Pantry area is huge and contains a 3×4 doggy shower (can be converted into a regular shower and used for cleaning up from yard-work or before coming into your home). The Laundry/Pantry also contains a build-in laundry sink, lots of cabinets, a large window for light, and access to a wall full of cabinetry for storage. Bedrooms 2 and 3 share a large bath with dual sinks, a linen closet, 6 ft tub/shower combo, and open shelves for extra storage. The exterior of this house is classic, with a modern interior for today’s families. Also, relax on the 10 ft deep wrap-around porch – front, side or rear location.

Specifications

Total 2090 sq ft

  • Main: 2090
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 576

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 90'0
  • Depth: 54'0

Roof

  • Max Ridge Height: 28'3
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 12/12
Full Rendering – westhomeplanners.com

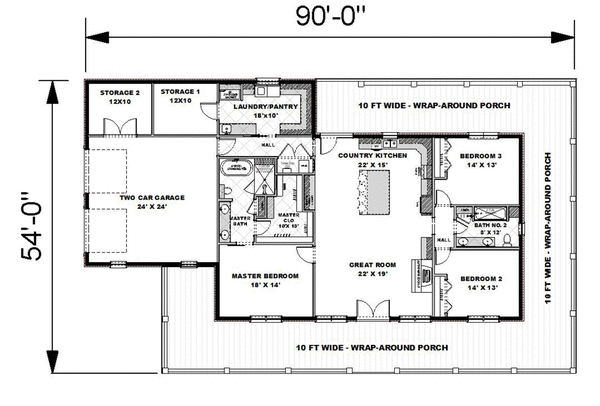

MAIN Plan – westhomeplanners.com
Left & Rear – westhomeplanners.com
Front & Right – westhomeplanners.com
Left & Front – westhomeplanners.com
Great Room – westhomeplanners.com
Kitchen – westhomeplanners.com
Kitchen to Great Room – westhomeplanners.com
Kitchen & Great Room – westhomeplanners.com
Kitchen – westhomeplanners.com
Pantry – westhomeplanners.com
Laundry to Storage – westhomeplanners.com
Great Room – westhomeplanners.com
Kitchen – westhomeplanners.com
Laundry – westhomeplanners.com

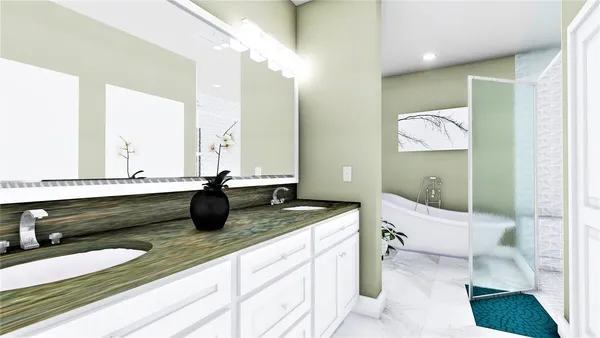

Master Bath – westhomeplanners.com
Laundry – westhomeplanners.com
