Plan No.537841

Vaulted Great Room

This compact home offers a great option for the first time homebuyer, empty nester, or perfect for a lakeside or vacation home. A Great Room is topped by a sloped, reaching 12’ in the center, and warmed by a gas fireplace. The Kitchen and Dining area are defined by a 5 ½’ island with cabinets below, offering extended storage and a fun gathering place when entertaining. A first floor Master and Laundry Room location are convenient for a step saving arrangement. Two additional bedrooms for younger family members or overnight guests, are found on the second floor, each with a large closet. Located in the hall is a 5’ linen closet adding more storage availability. A rough-in bath is provided in the basement offering the option of additional living space if needed. While the home is 38’2” wide the optional wing wall (5’) and the cantilevered fireplace (2’) extend the width to 47’2’ and the covered porch extends the depth to 55’.

Specifications

Total 1487 sq ft

  • Main: 1040
  • Second: 447
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 440

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0-12'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 38'2
  • Depth: 45'6

Roof

  • Max Ridge Height: 26'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 8/12
Full Rendering – westhomeplanners.com

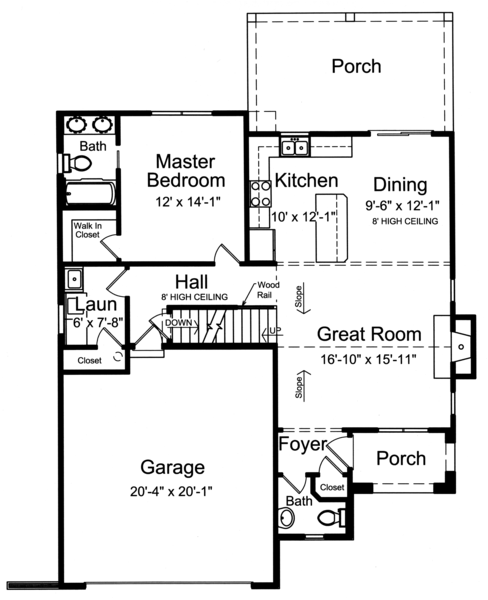

MAIN Plan – westhomeplanners.com

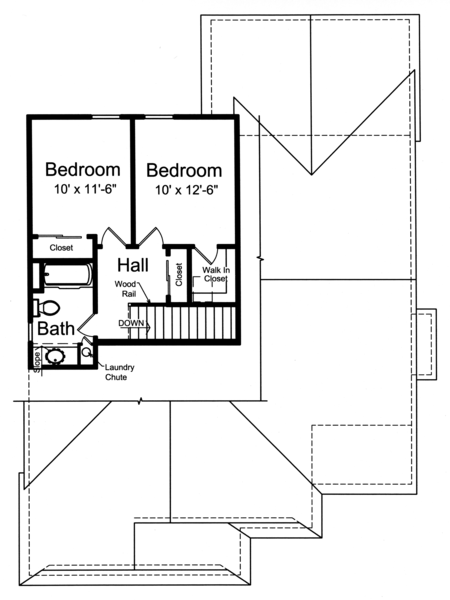

SECOND Plan – westhomeplanners.com

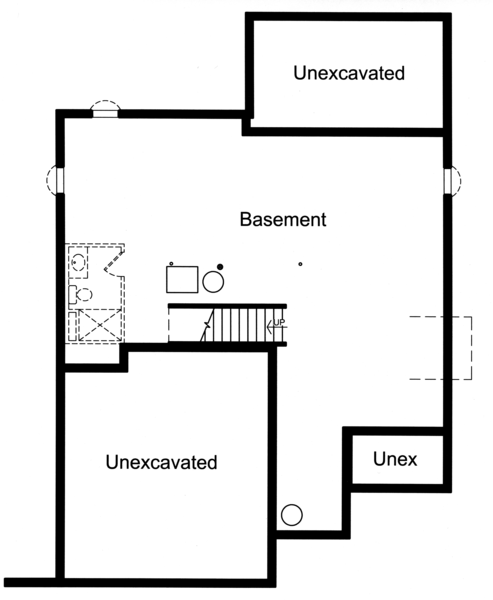

BASEMENT Plan – westhomeplanners.com

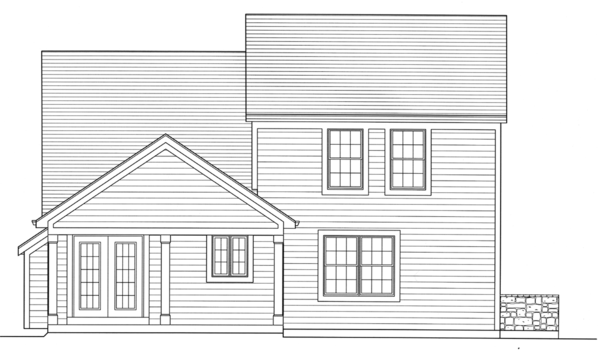

REAR Elevation – westhomeplanners.com

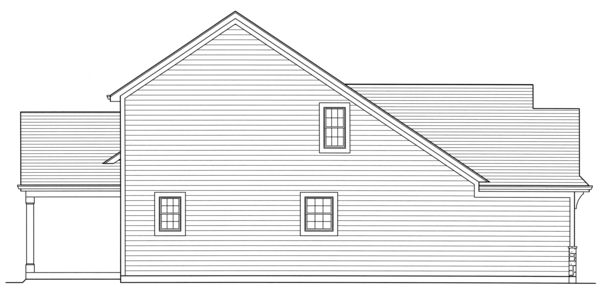

LEFT Elevation – westhomeplanners.com

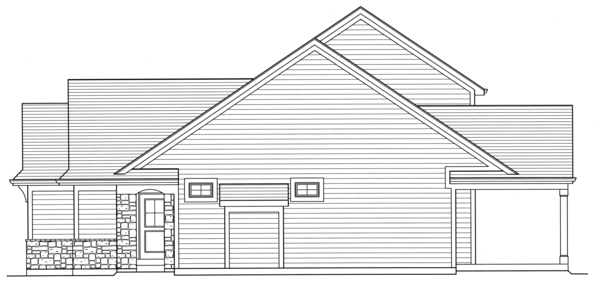

RIGHT Elevation – westhomeplanners.com
