Plan No.340101

Garage With Studio

This country style detached garage plan can accomodate 2 cars. Each overhead door is 9' wide x 8' tall. Towards the back of the garage is a desirable utility sink plus pull down attic access. To the right of the garage is a comfortable studio with two storage closets - one a large walk-in closet - plus a full bathroom. This studio would make an ideal guest suite for those looking to provide regular or longer term guests a private place to retreat to. Other uses for this space include craft or hobby room, or as a home office. Note: the 2x6 wall framing is around the studio, 2x4 framing is indicated around the garage. The area of the Studio is 350 sq. ft., the Double Garage area is 660 sq. ft.

Specifications

Total 1010 sq ft

  • Main: 1010
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 660

Rooms

  • Beds: 0
  • Baths: 0
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 38'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 18'4
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12

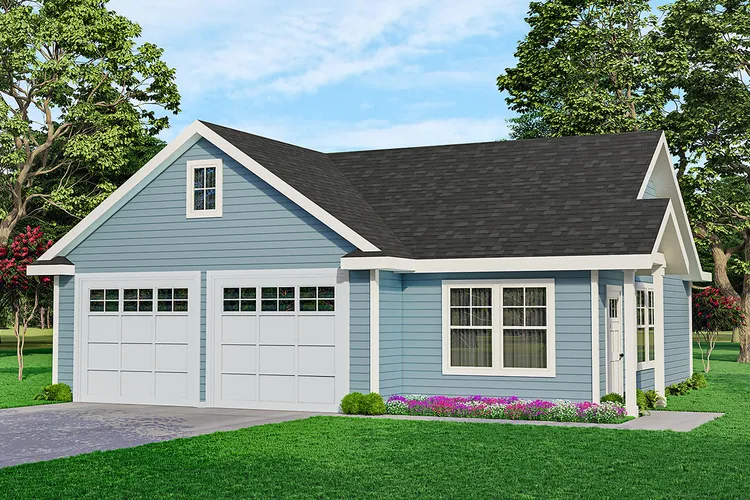

Full Rendering – westhomeplanners.com

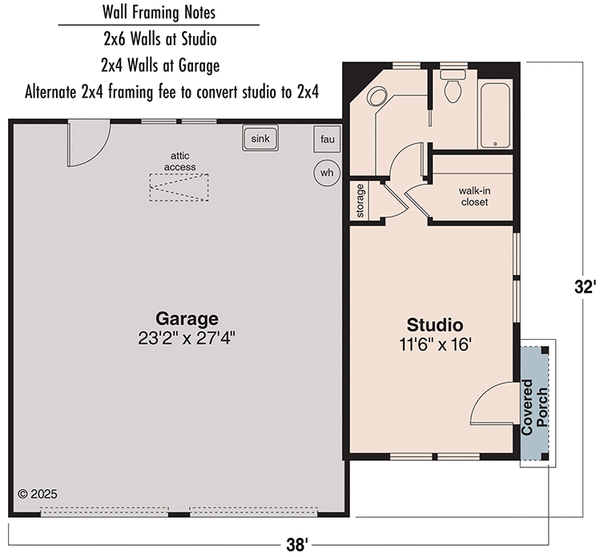

MAIN Plan – westhomeplanners.com

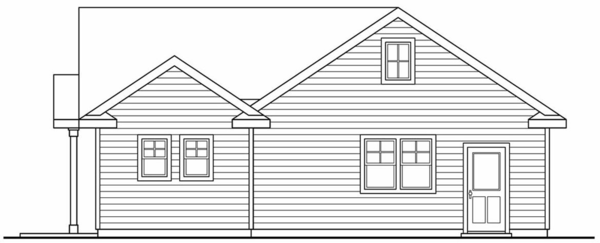

REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com

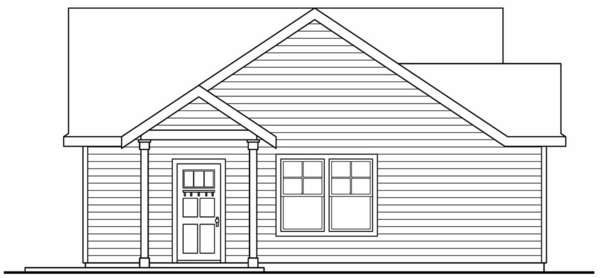

RIGHT Elevation – westhomeplanners.com
