Plan No.154481

Family Center Design

Prominent gables and a deep covered porch contribute to the Craftsman exterior appeal. Inside, the unified family center design concept takes center stage, providing the ultimate in flexibility, defined by furniture placement. Window groupings along the side of the suggested dining space and at the back of the noted living space bathe this area in sunlight, and the kitchen boasts plentiful work space and convenient storage. There’s also a desk space at one end of the dining area, tucked into the wrapping staircase to the lower level.

Specifications

Total 1844 sq ft

  • Main: 1844
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1844
  • Garage: 853

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0-10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 9'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: tripleGarage
  • Width: 55'0
  • Depth: 64'4

Roof

  • Max Ridge Height: 28'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6/12
  • Secondary Pitch: 6/12
Full Rendering – westhomeplanners.com

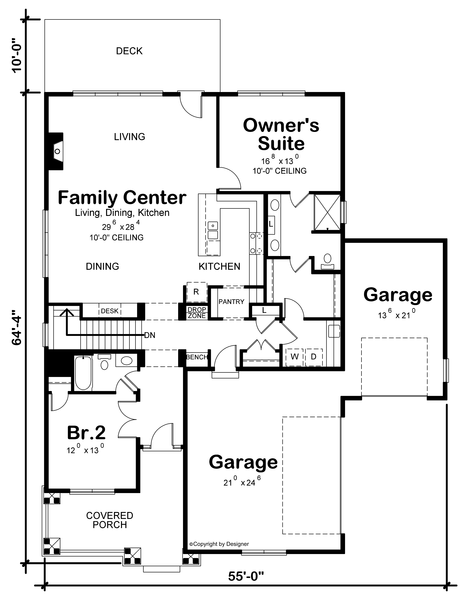

MAIN Plan – westhomeplanners.com

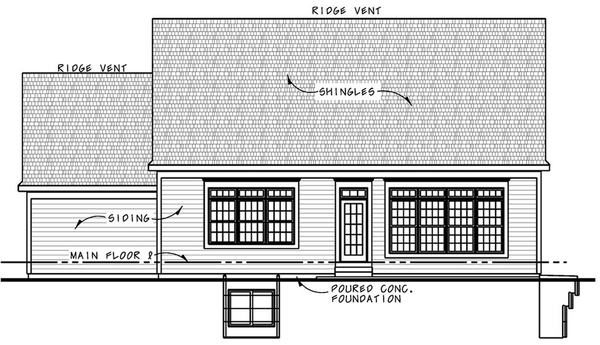

REAR Elevation – westhomeplanners.com

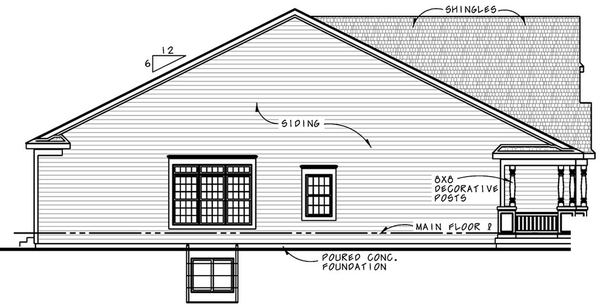

LEFT Elevation – westhomeplanners.com

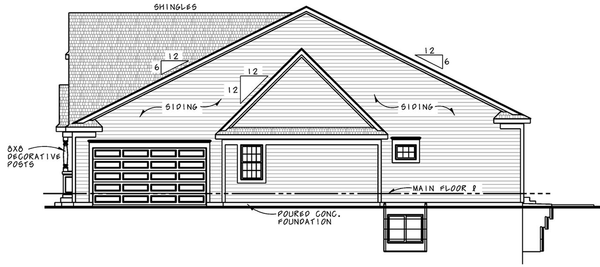

RIGHT Elevation – westhomeplanners.com
