833–493–0942Plan No.240602
All plans have the following as a part of every plan; Slab foundation is standard (crawl space and basement foundations are available for an additional fee of $195.00 each), 2 x 4 stud construction exterior walls standard (2x6 option $195.00), common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans files are emailed to the customer in PDF or CAD (Softplan, DWG or DXF) format. All plans are Unlimited Build. ADDITIONAL INFORMATION: Master Closet – 6-2 x 7-6, Master Bath – 9-4 x 11, Foyer – 7 x 5, Utility Room – 5-2 x 6-6, Bathroom 2 – 6 x 3, Bathroom 3 – 9-2 x 5, Pantry – 3’ Wide, Kitchen Island – 3 x 7, Bonus Room – 21 x 13. Please note, Bonus Room area is not included in the total square footage.
Specifications
Total 2060 sq ft

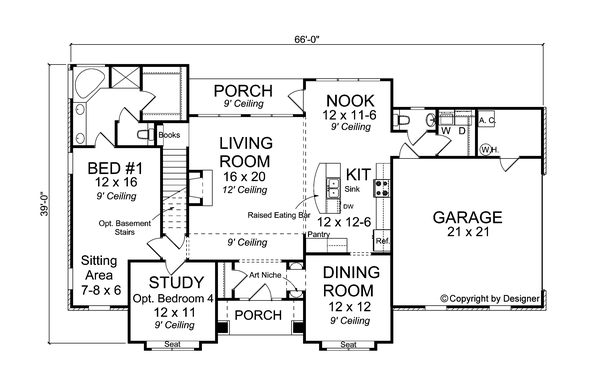

- Main: 1588

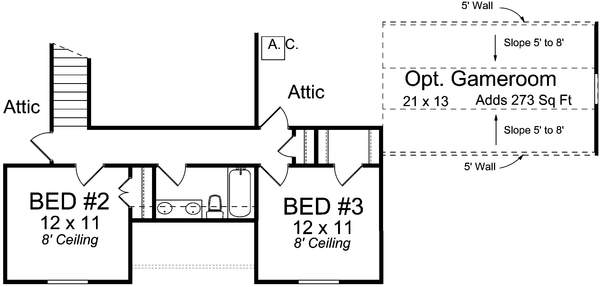

- Second: 472
- Third: 0
- Loft/Bonus: 273
- Basement: 0
- Garage: 506
Rooms
- Beds: 3
- Baths: 2
- 1/2 Bath: 1
- 3/4 Bath: 0
Ceiling Height
- Main: 9'0-12'0
- Second: 8'0
- Third:
- Loft/Bonus:
- Basement:
- Garage:
Details
- Exterior Walls: 2x4
- Garage Type: 2 Car Garage
- Width: 66'0
- Depth: 39'0
Roof
- Max Ridge Height: 25'0
- Comments: (Main Floor to Peak)
- Primary Pitch: 10/12
- Secondary Pitch: 8/12
