Plan No.368511

Split Bedroom Floor Plan

Features a three bedroom and two full bath Split bedroom floor plan. The large Living Room flows into the Dining area. A well-equipped U-shaped Kitchen opens to the Dining area. The Laundry is conveniently located in the Bedroom wing. The spacious Master Bedroom is complete with a walk-in closet and private Bath

Specifications

Total 1158 sq ft

  • Main: 1158
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 390

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 50'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 18'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

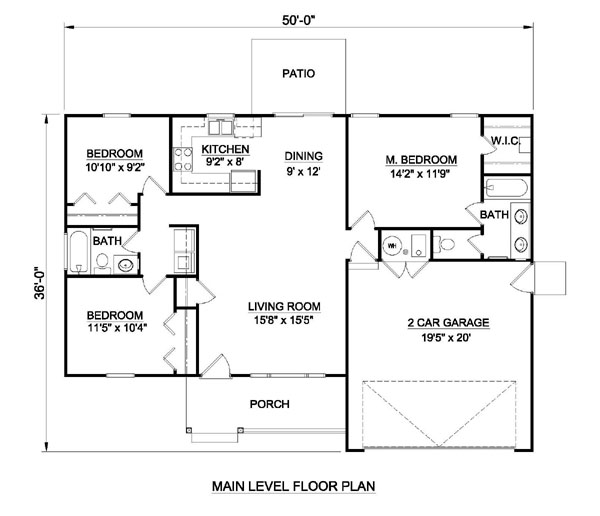

MAIN Plan – westhomeplanners.com
