Plan No.488061

The Double Garage is included with the plans, it is shown in a suggested location with a covered walkway joining the rear porch, but can be built in another location to suit your building site.

Specifications

Total 1608 sq ft

  • Main: 1608
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 12'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 59'0
  • Depth: 50'0

Roof

  • Max Ridge Height: 32'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 0/12

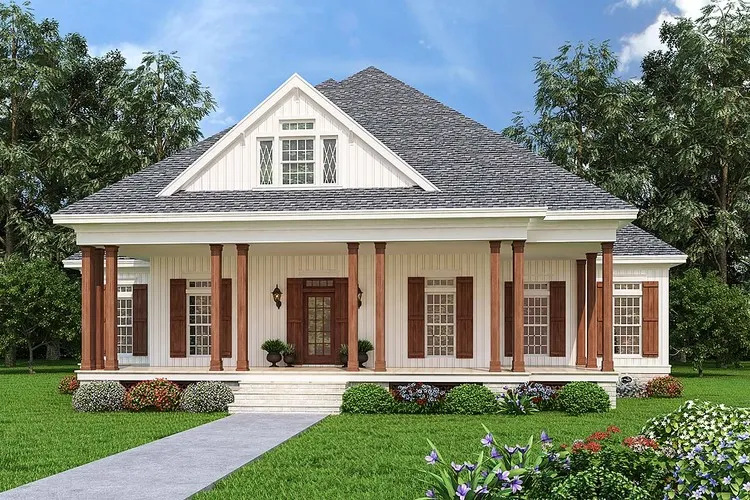

Full Rendering – westhomeplanners.com

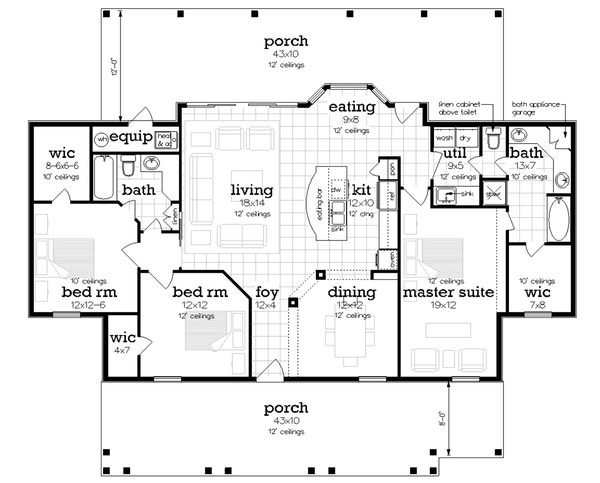

MAIN Plan – westhomeplanners.com

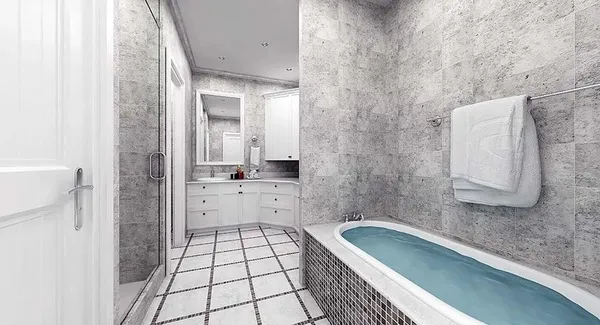

Ensuite Bath – westhomeplanners.com

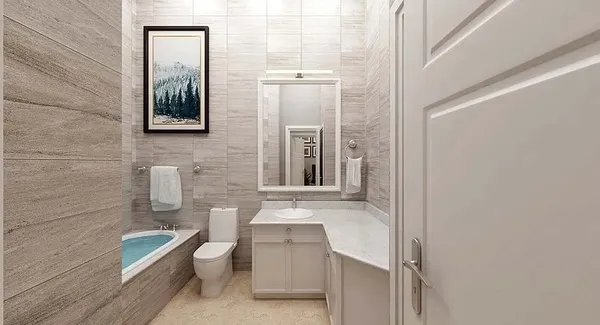

Family Bath – westhomeplanners.com

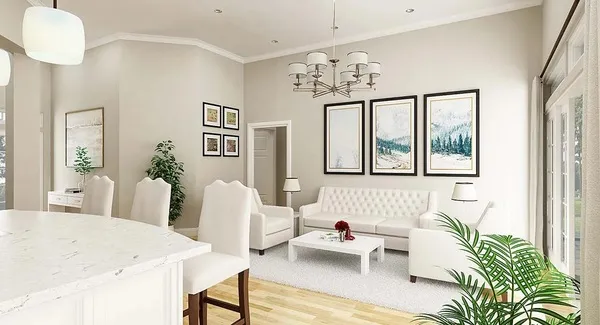

Kitchen to Living – westhomeplanners.com

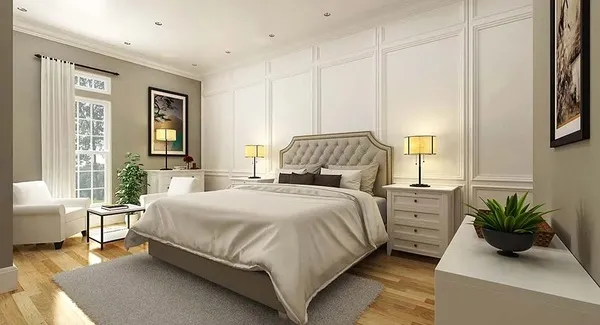

Master Suite – westhomeplanners.com

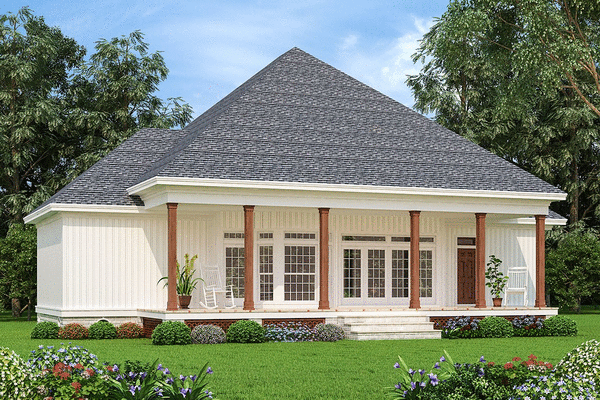

REAR Elevation – westhomeplanners.com

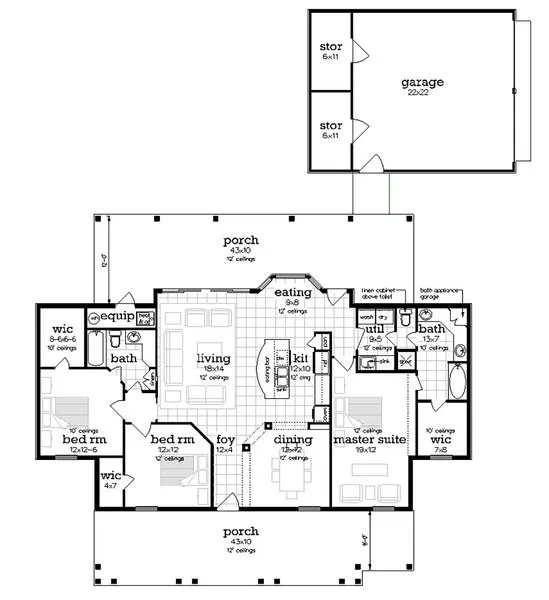

Opt. Double Garage – westhomeplanners.com
