Plan No.306803

Please note, the Bonus Area not included in the Total Living Area Square Footage.

Specifications

Total 3086 sq ft

  • Main: 3086
  • Second: 0
  • Third: 0
  • Loft/Bonus: 525
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus: 9'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: tripleGarage
  • Width: 86'0
  • Depth: 69'0

Roof

  • Max Ridge Height: 27'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

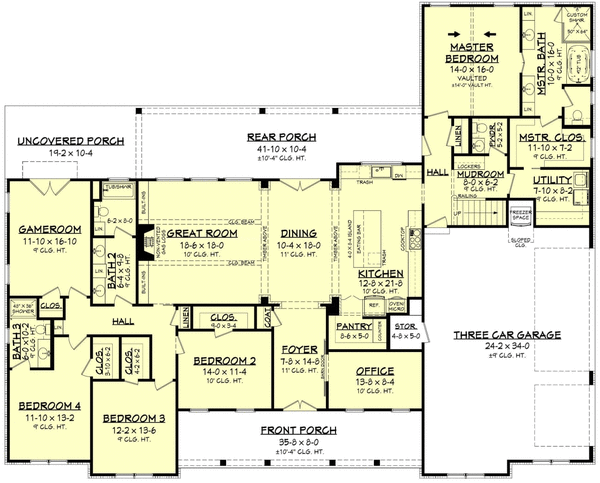

MAIN Plan – westhomeplanners.com

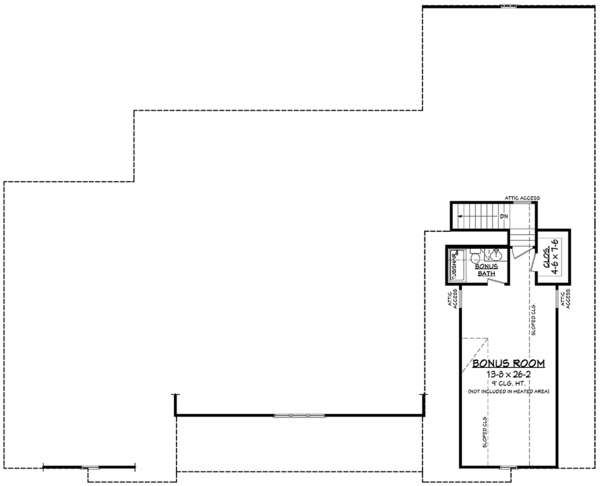

ATTIC Plan – westhomeplanners.com

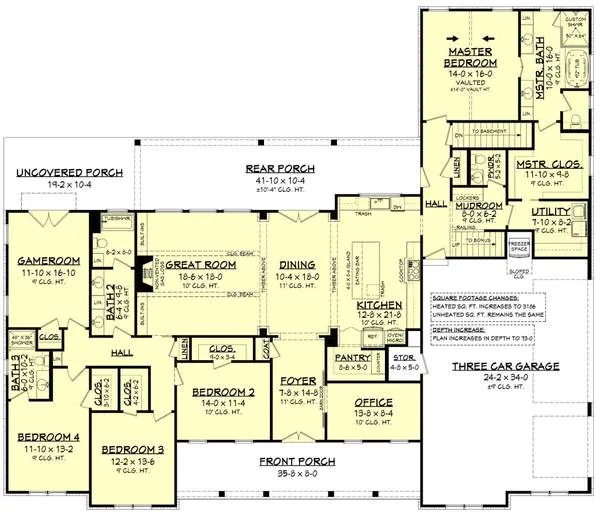

Opt. Basement Staircase – westhomeplanners.com

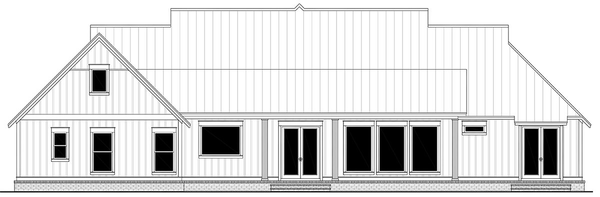

REAR Elevation – westhomeplanners.com

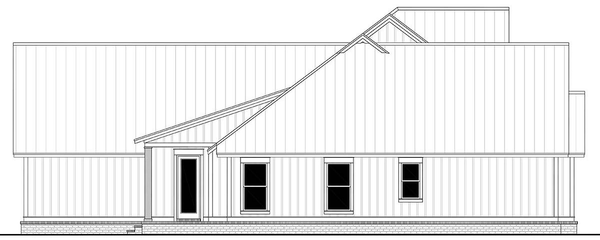

LEFT Elevation – westhomeplanners.com

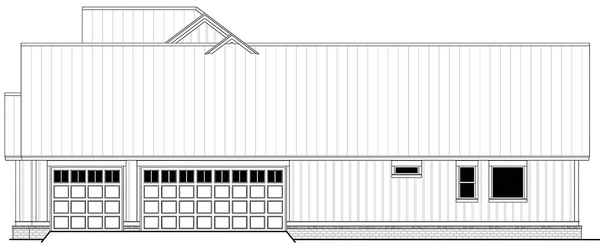

RIGHT Elevation – westhomeplanners.com
