Plan No.203212

A Classy Prowed Front

A classy prowed front graces this new A-frame design which you will find full of pleasant surprises. Starting on the second floor...the use of shed dormers not only gives a great exterior look, but provides the two bedrooms and bath with a full 8'-0" ceiling height. An attractive vaulted ceiling is visible for the rest of the roof and you can look over the railing down to the livingroom below in the handy loft/study area. A generously sized mudroom/utility area on the main floor with nearby lavatory is great for family returning home from work or play. The Great Room vaults from 9'-0" at wall to 21'-6" at peak.

Specifications

Total 1697 sq ft

  • Main: 955
  • Second: 742
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0-21'6
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: none
  • Width: 29'0
  • Depth: 49'0

Roof

  • Max Ridge Height: 23'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 4.5/12
Full Rendering – westhomeplanners.com

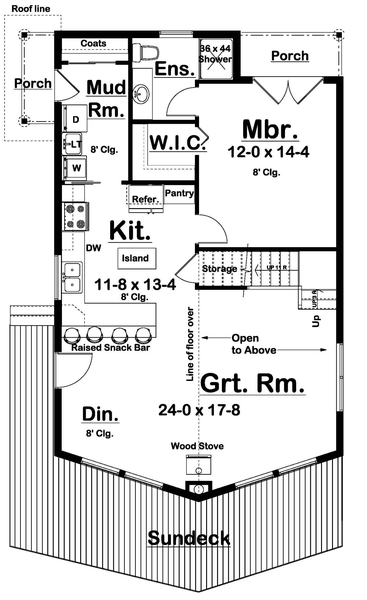

MAIN Plan – westhomeplanners.com

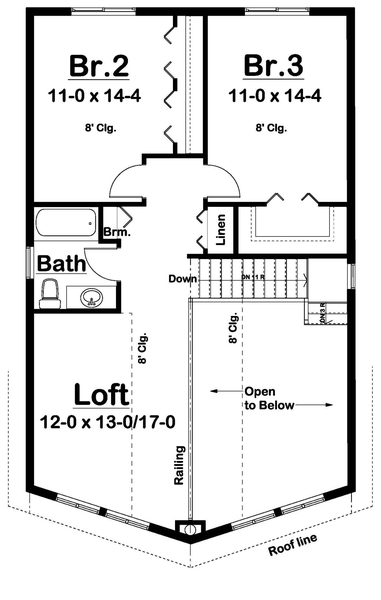

SECOND Plan – westhomeplanners.com

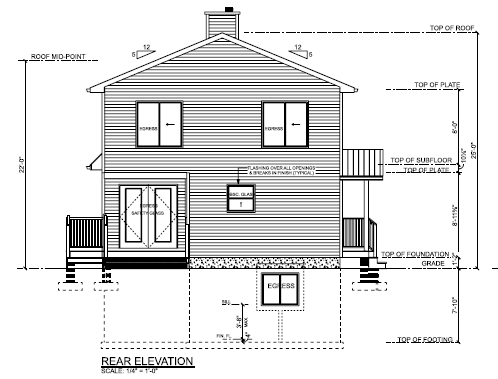

REAR Elevation – westhomeplanners.com

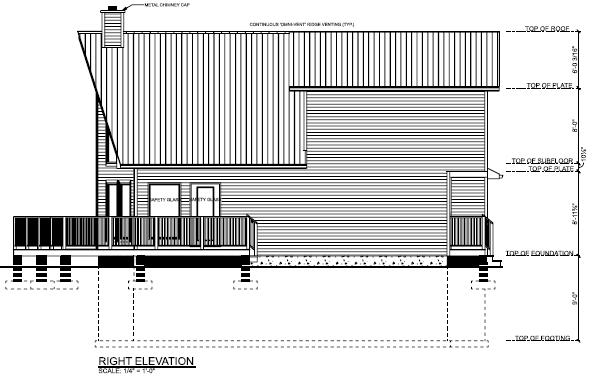

RIGHT Elevation – westhomeplanners.com
