Plan No.535312

Truly Great Room

This beautiful home of siding and shakes speaks of a vacation home/retreat. The open floor plan of the extra-large Kitchen with island and Living Room with fireplace lends itself to a truly Great Room for communal gathering. The Dining Room enjoys a rear yard view that is shared by a restful Living Room, Screened Porch and Deck. The Mud Room area makes a great transition from outdoor activities. Three bedrooms and the Laundry are located on the sleeping level of the home with the Master Bedroom enjoying a walk-in closet, double bowl vanity, shower and view to the rear yard. Each of the other bedrooms also enjoys a private bath and large closets. A three car garage provides storage for outdoor toys and the loft provides additional storage or can be converted to more sleeping space if needed. Please note: The five and eight set plan packages include the PDF.

Specifications

Total 2135 sq ft

  • Main: 1148
  • Second: 987
  • Third: 0
  • Loft/Bonus: 405
  • Basement: 0
  • Garage: 748

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 2

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: tripleGarage
  • Width: 77'6
  • Depth: 37'5

Roof

  • Max Ridge Height: 33'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 4/12
Full Rendering – westhomeplanners.com

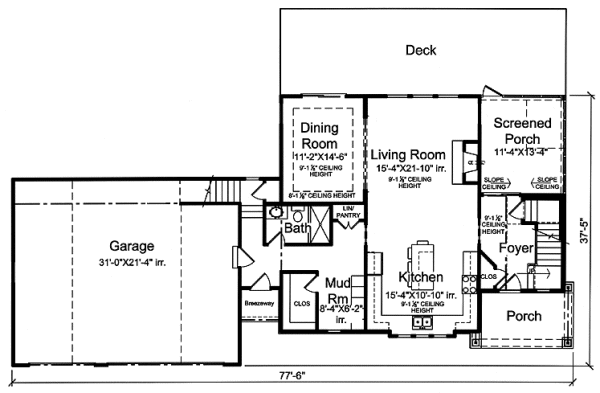

MAIN Plan – westhomeplanners.com

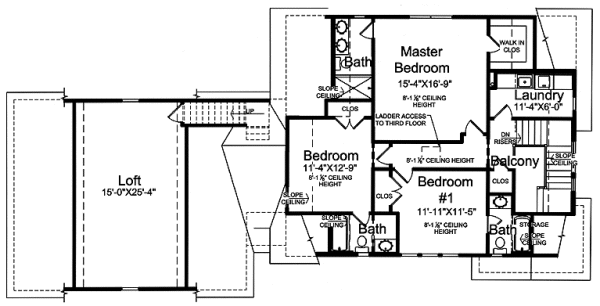

SECOND Plan – westhomeplanners.com

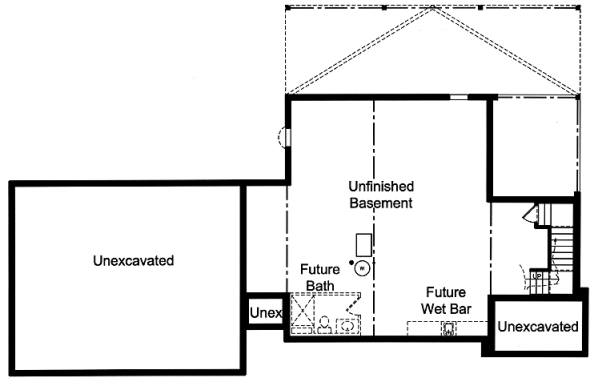

BASEMENT Plan – westhomeplanners.com

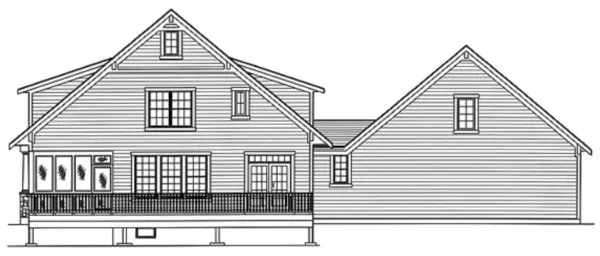

REAR Elevation – westhomeplanners.com

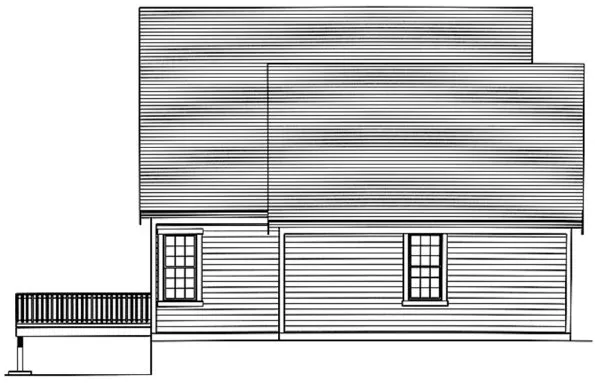

LEFT Elevation – westhomeplanners.com

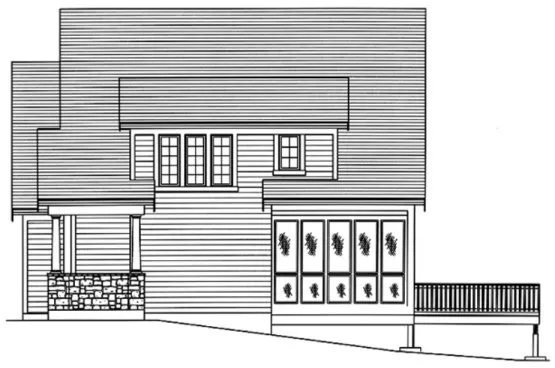

RIGHT Elevation – westhomeplanners.com
