Plan No.333842

Man Cave

The Total Area of this Carriage House both floors is 2483 sq. ft.; Upper Floor 1260 sq. ft., Main Floor is the Exercise/Staircase area of 400 sq. ft., and the Garage area of 823 sq. ft. for a Main Floor total of 1223 sq. ft.

Specifications

Total 2483 sq ft

  • Main: 1223
  • Second: 1260
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 823

Rooms

  • Beds: 1
  • Baths: 0
  • 1/2 Bath: 0
  • 3/4 Bath: 1

Ceiling Height

  • Main: 8'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 46'0
  • Depth: 31'0

Roof

  • Max Ridge Height: 28'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12

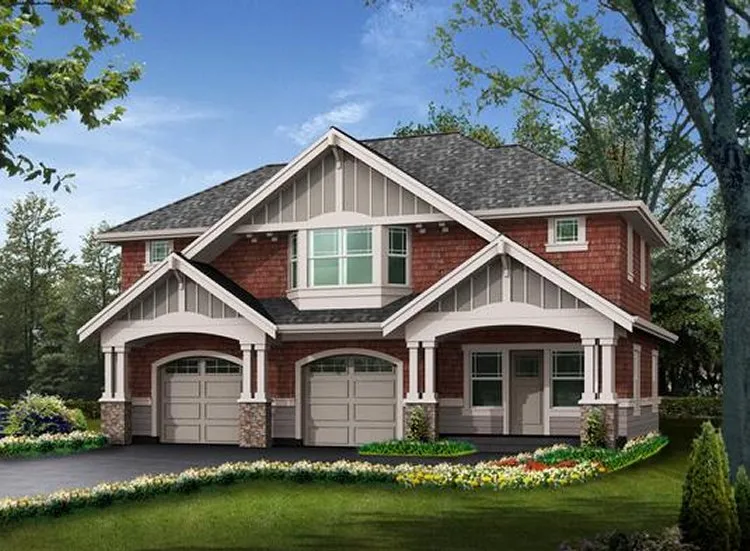

Full Rendering – westhomeplanners.com

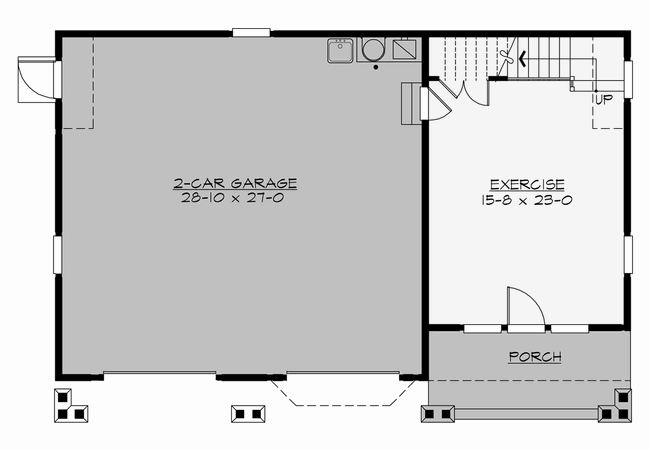

MAIN Plan – westhomeplanners.com

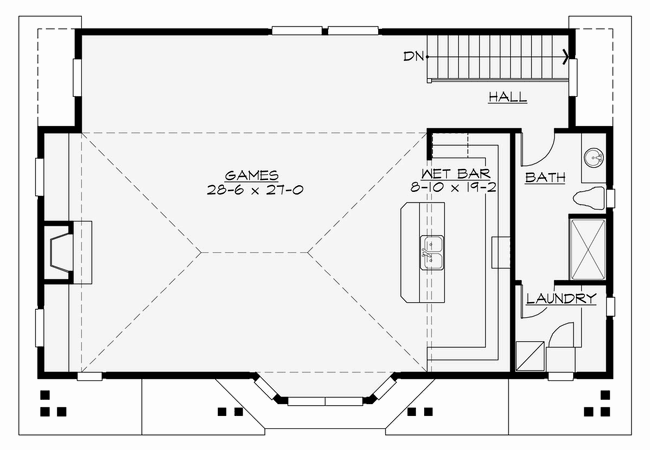

SECOND Plan – westhomeplanners.com

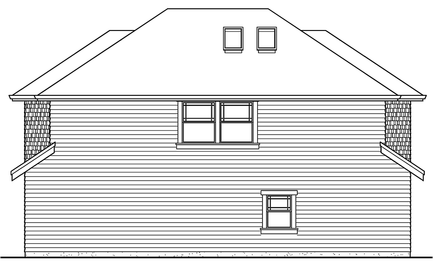

REAR Elevation – westhomeplanners.com

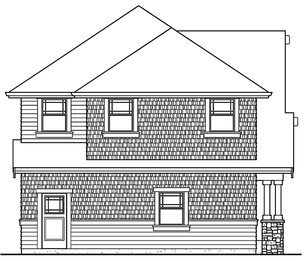

LEFT Elevation – westhomeplanners.com

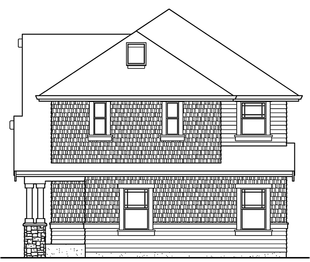

RIGHT Elevation – westhomeplanners.com
