Plan No.827964

Courtyard With Fountain

At the heart of the house it’s the Courtyard with a fountain that captures this authentic Spanish-Style design. There are also Courtyards on the rear and side of house. The Guest Suite also acts as a Mother-in-Law room with its own private garage. A round Staircase, a Balcony overlooking the center Courtyard and an Outdoor Living Veranda with a summer kitchen, Wet Bar and Study are some of the many fixtures of this splendid home.

Specifications

Total 4697 sq ft

  • Main: 3920
  • Second: 777
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 858

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0
  • Second: 10'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: Block
  • Garage Type: tripleGarage
  • Width: 77'8
  • Depth: 113'0

Roof

  • Max Ridge Height: 30'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 5/12
  • Secondary Pitch: 0/12

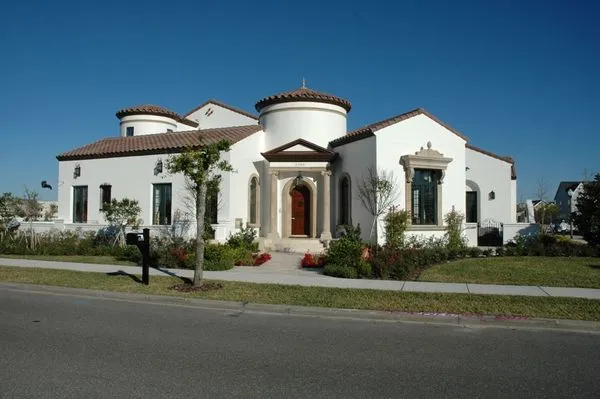

Full Rendering – westhomeplanners.com

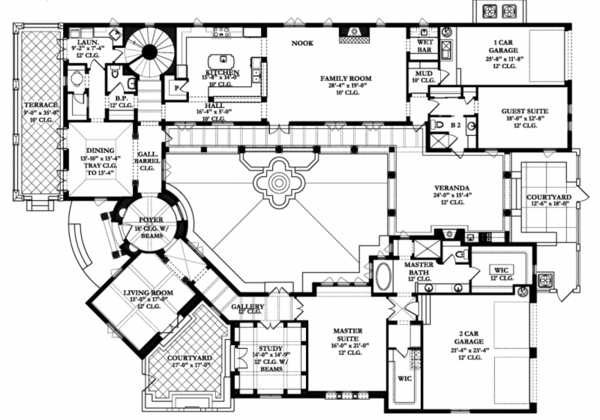

MAIN Plan – westhomeplanners.com

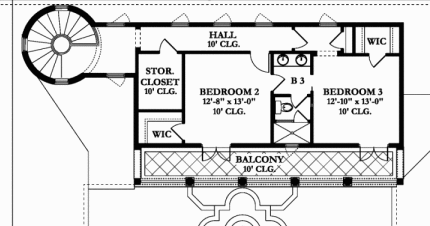

SECOND Plan – westhomeplanners.com

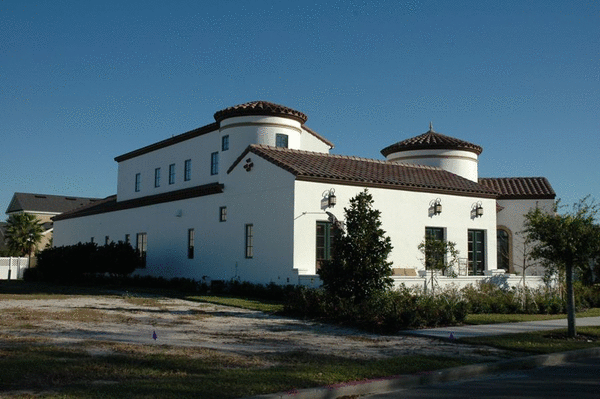

REAR Elevation – westhomeplanners.com

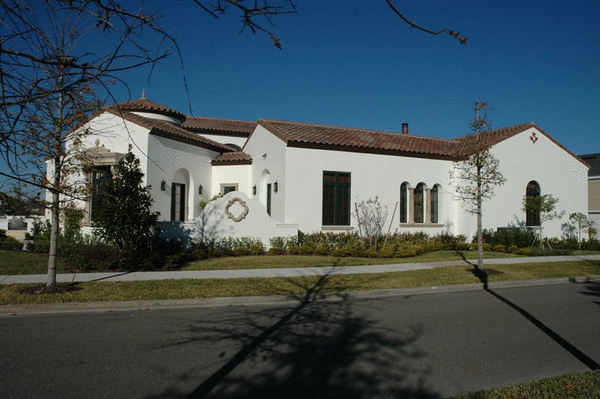

LEFT Elevation – westhomeplanners.com
