Plan No.306591

Unlimited License To Build included with CAD file sale. CAD file sale also includes PDF file. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files. Front porch 275 sq. ft. Rear porch 152 sq. ft.

Specifications

Total 1956 sq ft

  • Main: 1956
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 573

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0-11'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: 2 Car Garage
  • Width: 54'0
  • Depth: 57'0

Roof

  • Max Ridge Height: 29'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 4/12
Full Rendering – westhomeplanners.com

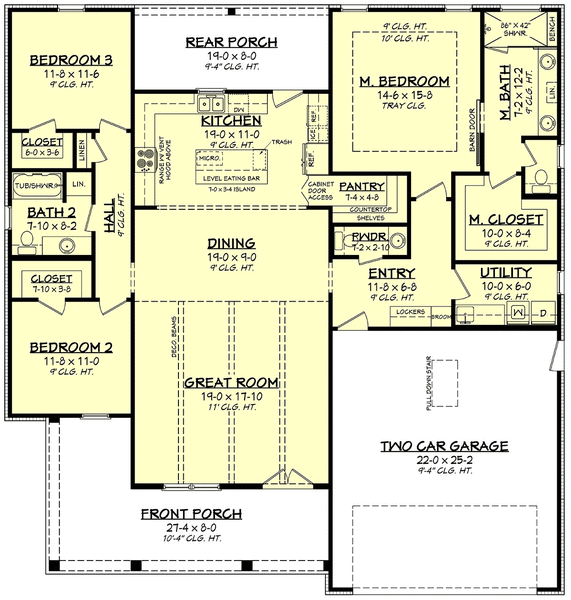

MAIN Plan – westhomeplanners.com
Opt. Basement Stairs – westhomeplanners.com
Dusk Rendering – westhomeplanners.com
Rear Rendering – westhomeplanners.com
Great Room – westhomeplanners.com
Great Rm to Dining-Kitchen – westhomeplanners.com
Dining-Kitchen – westhomeplanners.com
Kitchen – westhomeplanners.com
Kitchen Island – westhomeplanners.com
Main Bedroom – westhomeplanners.com

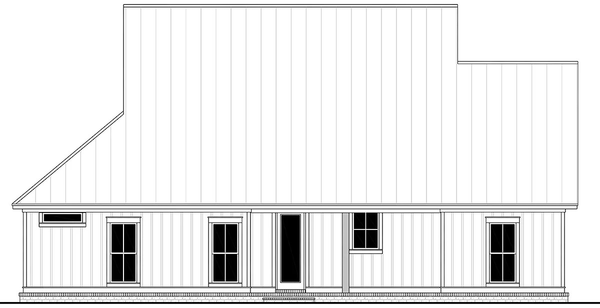

REAR Elevation – westhomeplanners.com

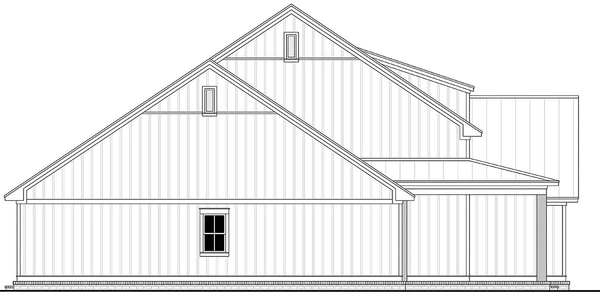

LEFT Elevation – westhomeplanners.com

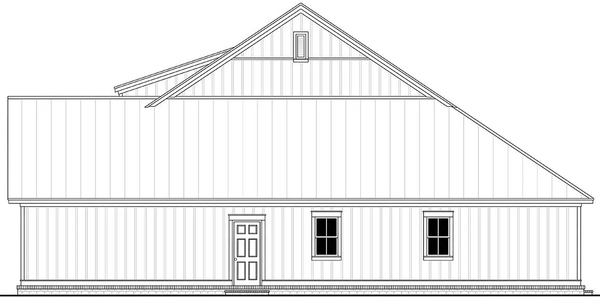

RIGHT Elevation – westhomeplanners.com

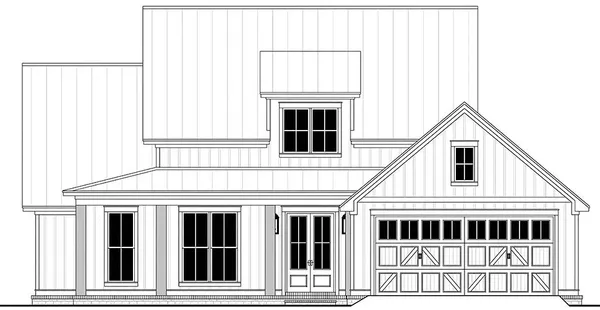

FRONT Elevation – westhomeplanners.com
