Plan No.632021

Split Bedroom Cottage Home Plan

This compact cottage has 3 bedrooms and 2 full baths. All the necessary ingredients provided in a simple structure that's affordable to build. The vaulted living room features a fireplace, dining area and access to the rear patio. An angled snack bar is the highlight of this well-planned U-shaped kitchen.

Specifications

Total 1202 sq ft

  • Main: 1202
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 47'0

Roof

  • Max Ridge Height: 21'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6/12
  • Secondary Pitch: 0/12

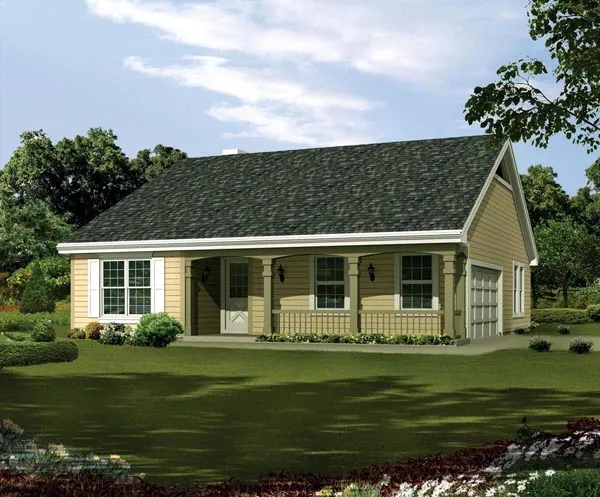

Full Rendering – westhomeplanners.com

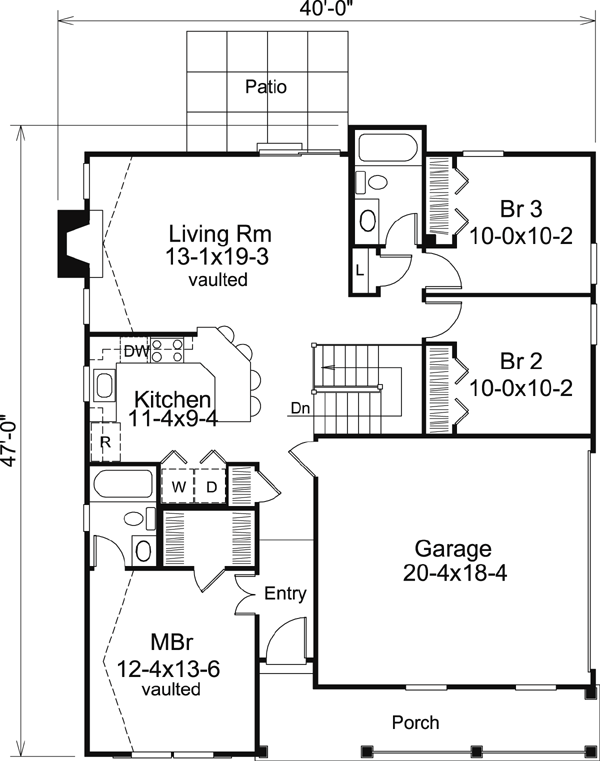

MAIN Plan – westhomeplanners.com

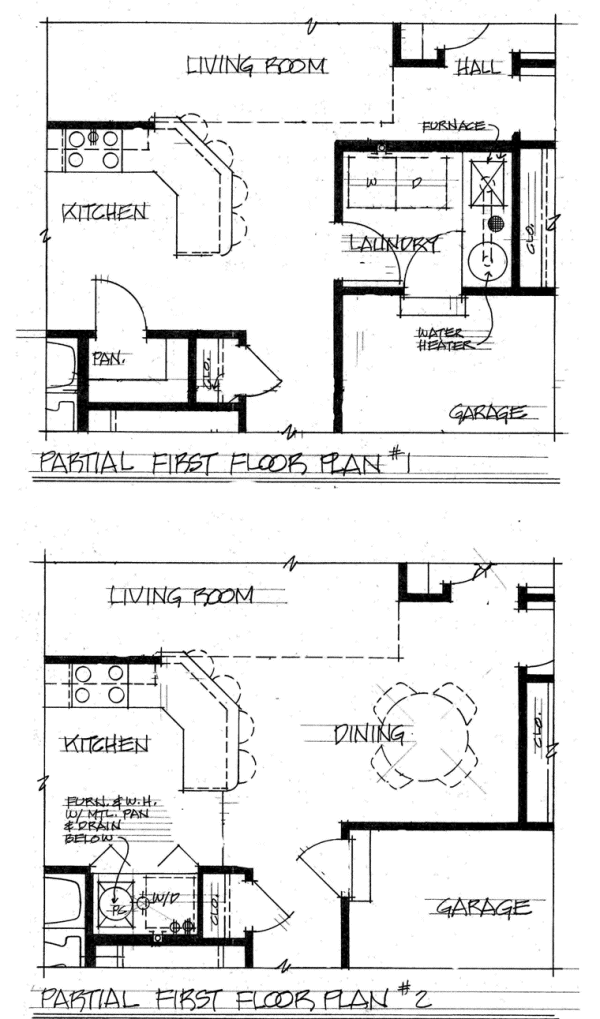

Alternate Floor Layouts – westhomeplanners.com
REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
