Plan No.499673

For Optional Garage Plan see Plan No. 490588.

Specifications

Total 2200 sq ft

  • Main: 1454
  • Second: 746
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 68'0
  • Depth: 55'0

Roof

  • Max Ridge Height: 33'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

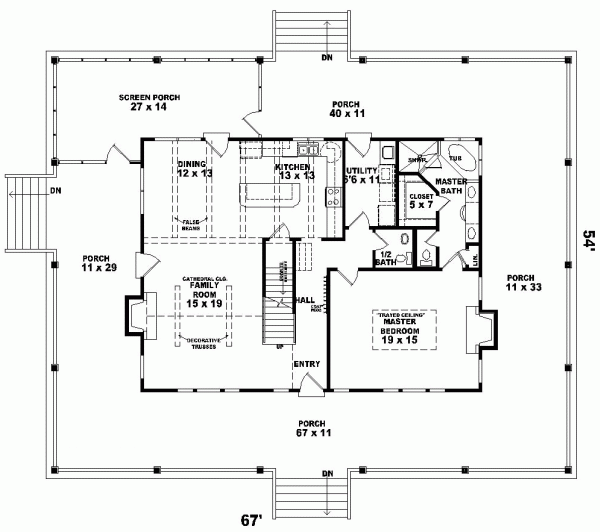

MAIN Plan – westhomeplanners.com

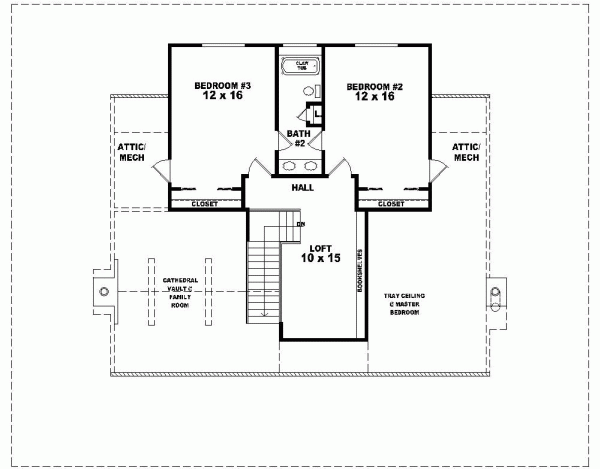

SECOND Plan – westhomeplanners.com

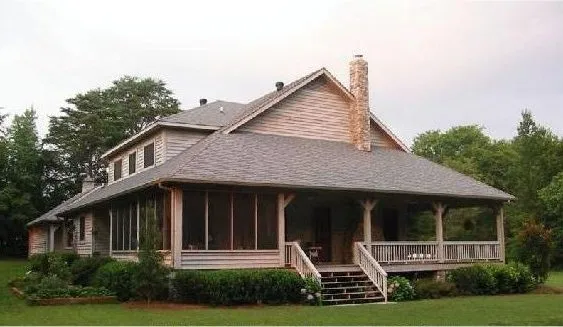

Left & Rear – westhomeplanners.com
Right & Front – westhomeplanners.com

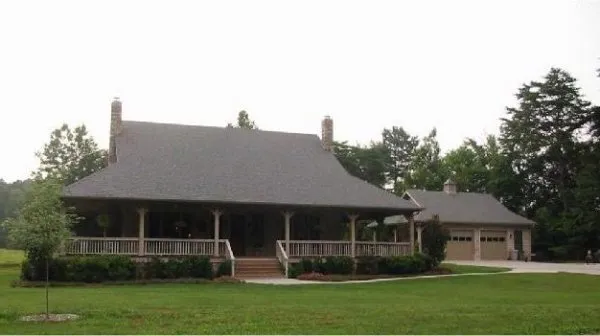

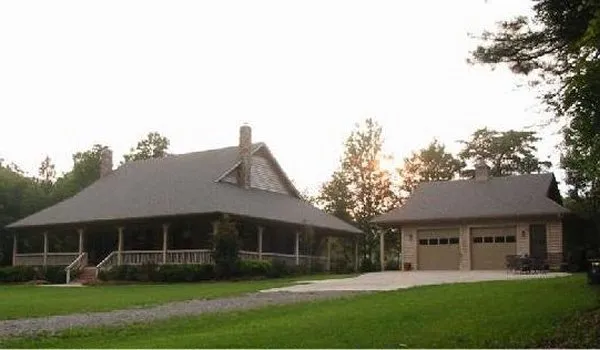

FRONT with Opt. Garage – westhomeplanners.com

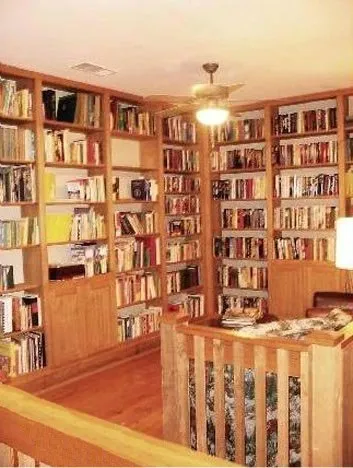

Loft – westhomeplanners.com

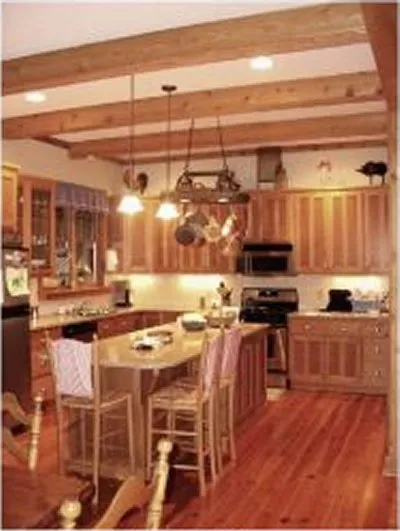

Kitchen – westhomeplanners.com

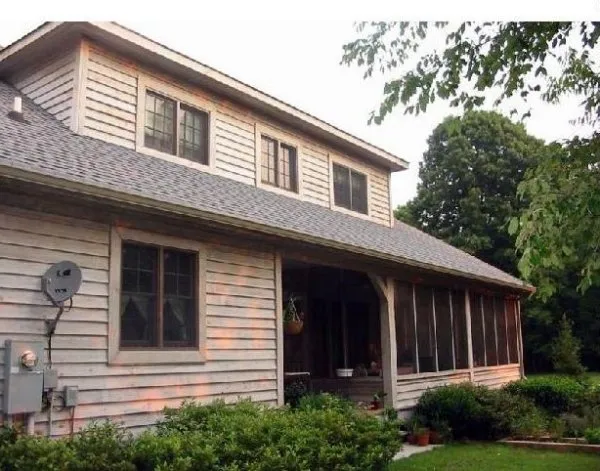

REAR Elevation – westhomeplanners.com
