Plan No.200292

Multi-featured Basement Entry

This multi-featured basement entry plan was designed with today's active family in mind. The combined formal living and dining rooms provide plenty of space for even the largest gathering. The cheerful atmosphere of these rooms is enhanced greatly by the vaulted ceiling which extends into the kitchen/nook area. There are three large bedrooms upstairs...all with good-sized closets, and there is the potential for at least two or three more in the above ground basement level. The wrap-around decks will provide generous space for outdoor entertaining. Total finished living area including the basement is 2655 sq ft.

Specifications

Total 1443 sq ft

  • Main: 1443
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1212
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 1

Ceiling Height

  • Main: 8'0 to 12'
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 47'0
  • Depth: 45'0

Roof

  • Max Ridge Height:
  • Comments: ()
  • Primary Pitch: 2/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

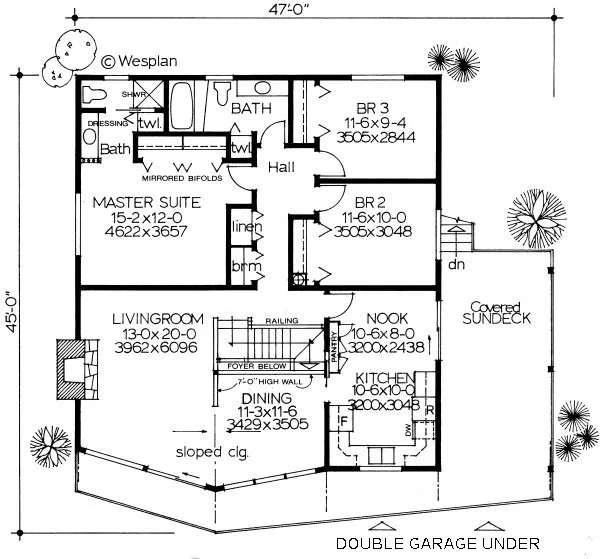

MAIN Plan – westhomeplanners.com

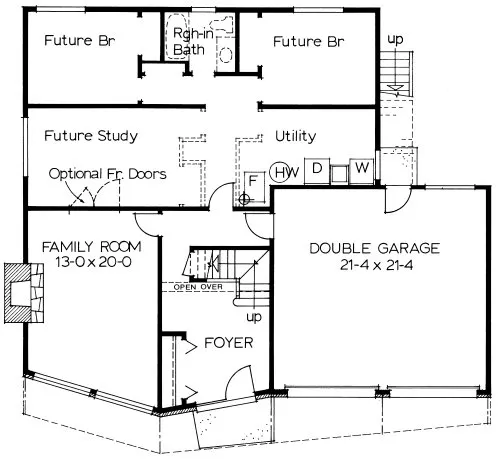

BASEMENT Plan – westhomeplanners.com

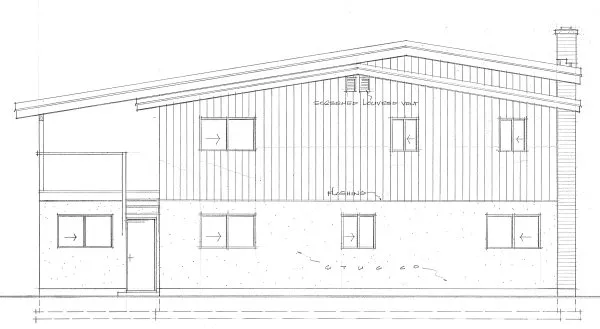

REAR Elevation – westhomeplanners.com
