Plan No.504463

Unique Design

The Main Floor area of the right unit is 1113 sq. ft. with a Second Floor area of 1205 sq. ft. for a Total of 2318 sq. ft. It has a Double Garage of 391 sq. ft. The left Suite has 1326 sq. ft. with a Single Garage/Workshop of 463 sq. ft.

Specifications

Total 3644 sq ft

  • Main: 2439
  • Second: 1205
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 6
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: tripleGarage
  • Width: 80'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 31'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 10/12
Full Rendering – westhomeplanners.com

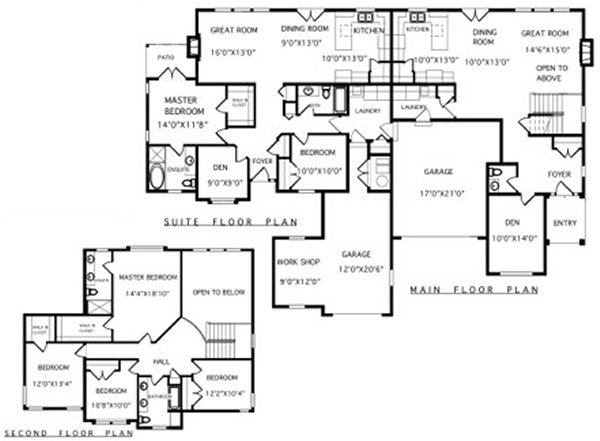

MAIN Plan – westhomeplanners.com

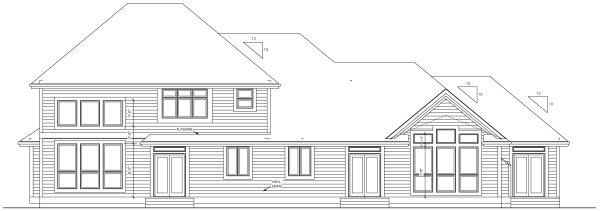

REAR Elevation – westhomeplanners.com
