Plan No.750323

UNIT 1 (Left) - Main Floor 1395 sq. ft., Second Floor 220 sq. ft., 2 Car Garage 439 sq. ft. and a Porch of 100 sq. ft. UNIT 2 (Right) - Main Floor 1395 sq. ft., Second Floor 220 sq. ft., 2 Car Garage 439 sq. ft. and a Porch of 100 sq. ft.

Specifications

Total 3230 sq ft

  • Main: 3230
  • Second: 440
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 878

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'4

Details

  • Exterior Walls: 2x6
  • Garage Type: 4 Car Garage
  • Width: 76'0
  • Depth: 54'0

Roof

  • Max Ridge Height: 19'7
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 9/12
  • Secondary Pitch: 6/12

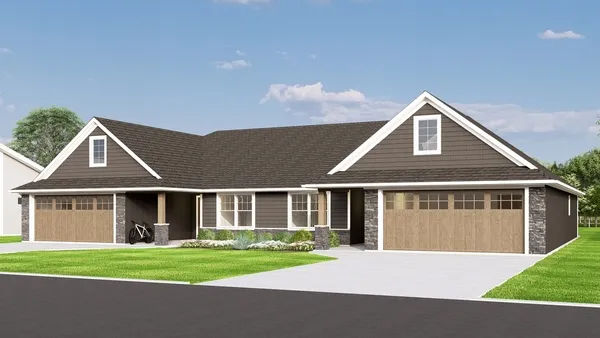

Full Rendering – westhomeplanners.com

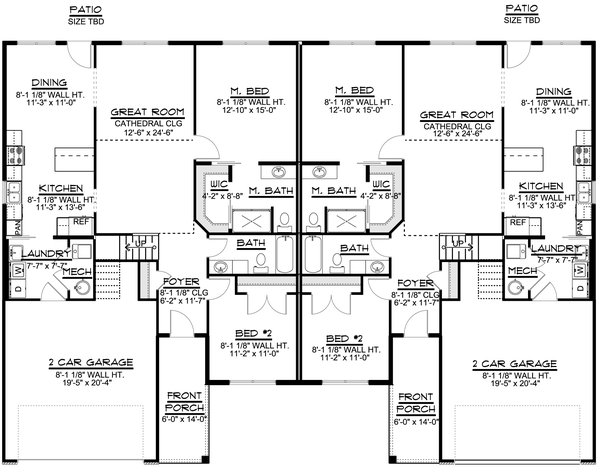

MAIN Plan – westhomeplanners.com

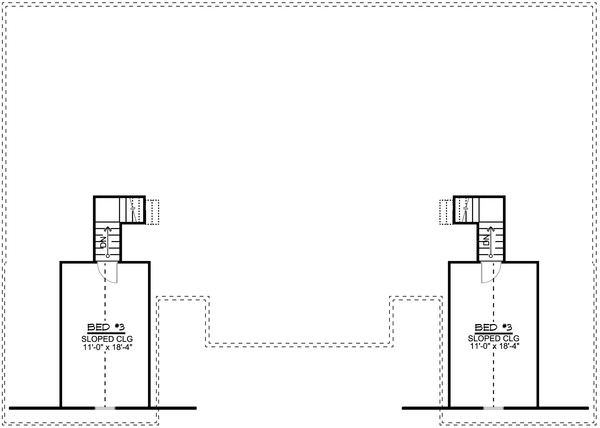

SECOND Plan – westhomeplanners.com
Front & Right – westhomeplanners.com
Right Side – westhomeplanners.com

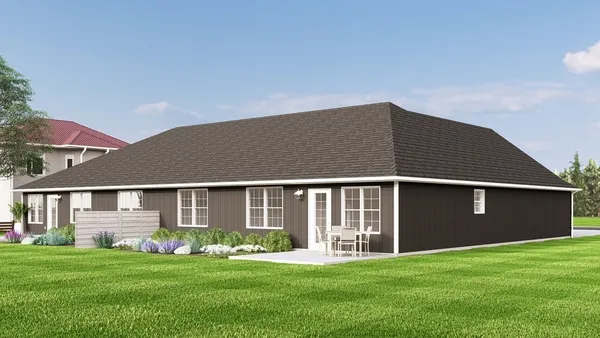

Rear & Right – westhomeplanners.com
Rear & Left – westhomeplanners.com
Front & Left – westhomeplanners.com
Right Unit Closeup – westhomeplanners.com

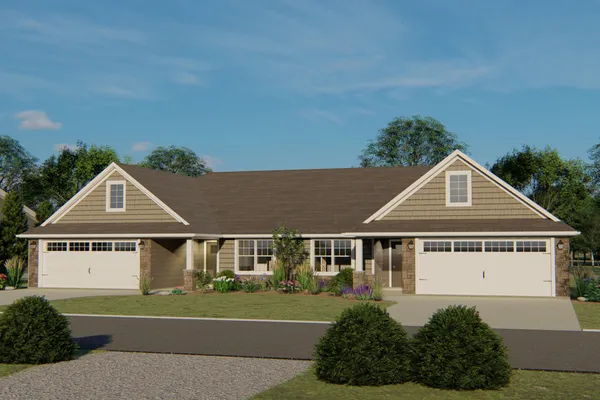

Alt. Color Scheme – westhomeplanners.com

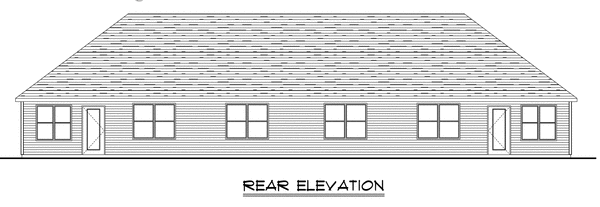

REAR Elevation – westhomeplanners.com

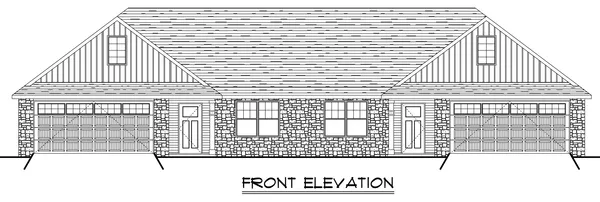

FRONT Elevation – westhomeplanners.com
