Plan No.519120

Room For Future Expansion

This well-planned, split-level design leaves room for expansion in the future. The foyer opens to the vaulted living room, where a window seat occupies a box-bay window. Steps lead down to expansion space and up to the main level. An L-shaped kitchen is open to the dinig room, which overlook the living room. Reach the sundeck through sliding glass doors in the dining room. Three bedrooms include a master suite with a full bath and walk-in closet and two family bedrooms with a shared bath. The lower floor has 858 square feet of unfinished space that may be developed into a family room, a full bath, a den, and a bedroom.

Specifications

Total 1200 sq ft

  • Main: 286
  • Second: 914
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 914
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 1

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 52'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 21'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 7/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

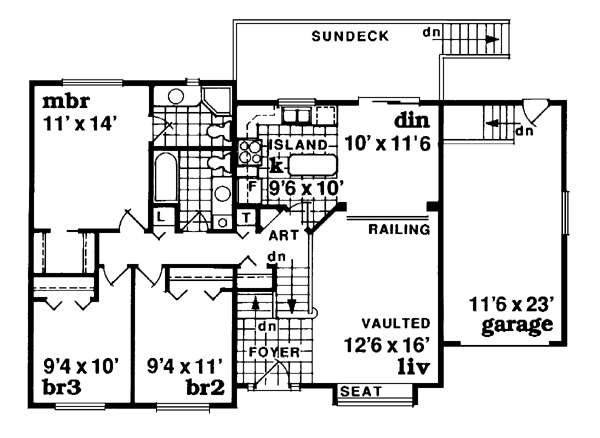

MAIN Plan – westhomeplanners.com

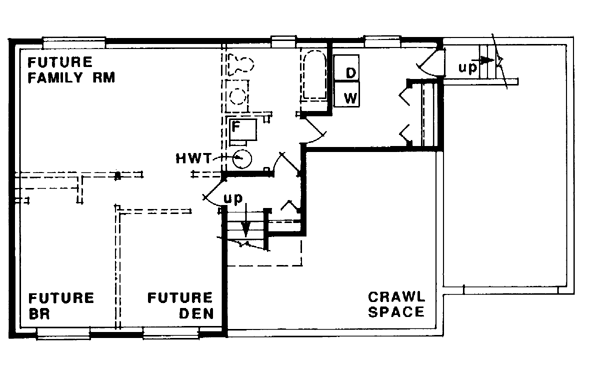

BASEMENT Plan – westhomeplanners.com

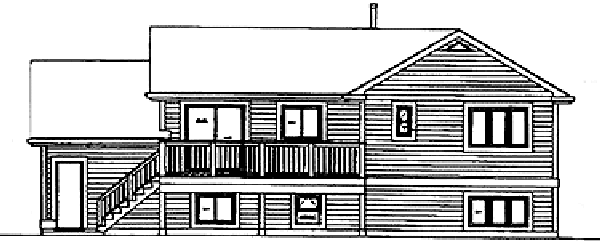

REAR Elevation – westhomeplanners.com
