Plan No.521941

Enchanting A-Frame

In the northern woods or on the southern coast---this enchanting A-frame will be the perfect retreat. Whether called upon to serve as a ski lodge or a summer haven, you will find great livability in its simple design. The first floor has a living and dining area and a corner kitchen. A private bedroom and a full bath round out this floor. The second level is devoted to a spacious loft that looks out not only over the living room, but through the picture windows and beautiful views beyond.

Specifications

Total 810 sq ft

  • Main: 576
  • Second: 234
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 24'0
  • Depth: 24'0

Roof

  • Max Ridge Height: 22'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12

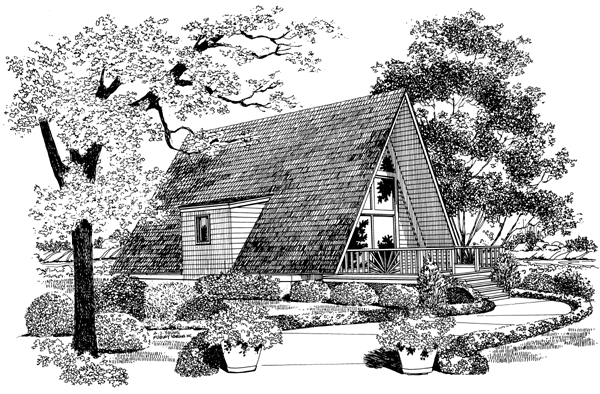

Full Rendering – westhomeplanners.com

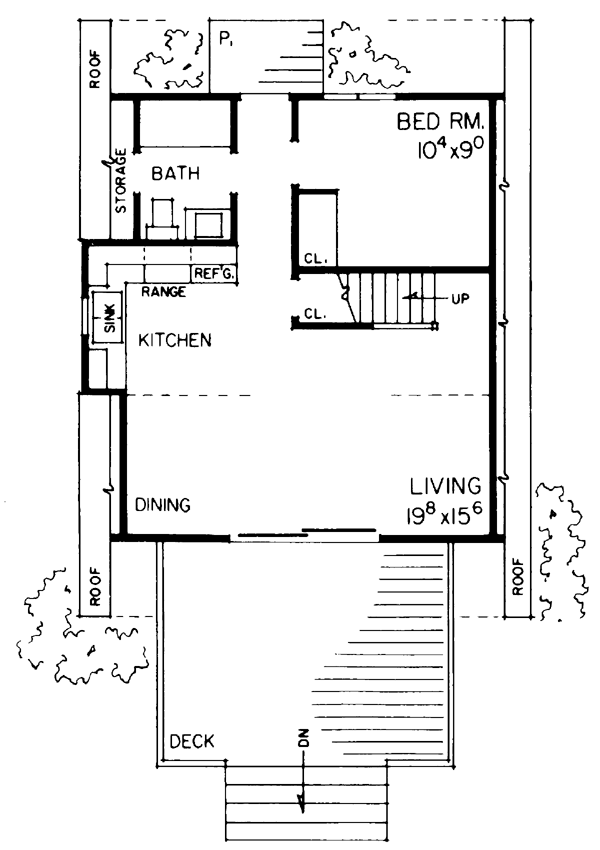

MAIN Plan – westhomeplanners.com

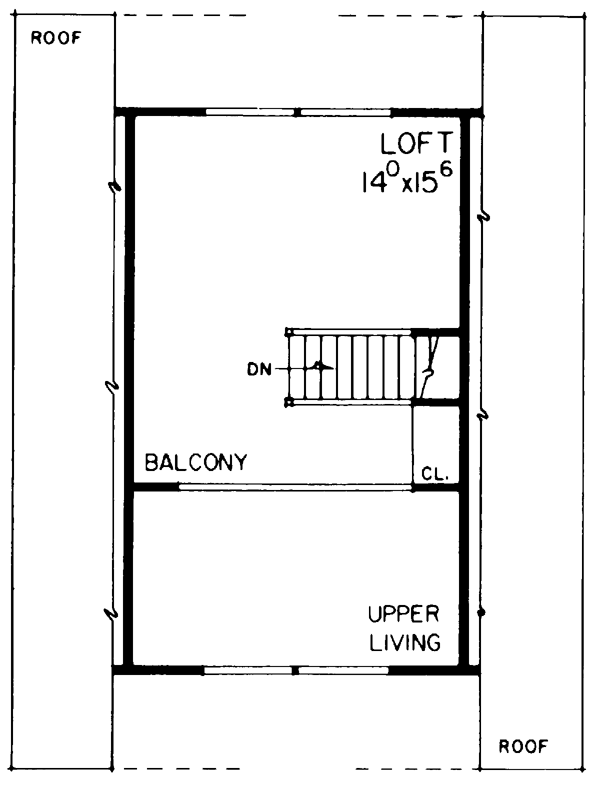

SECOND Plan – westhomeplanners.com

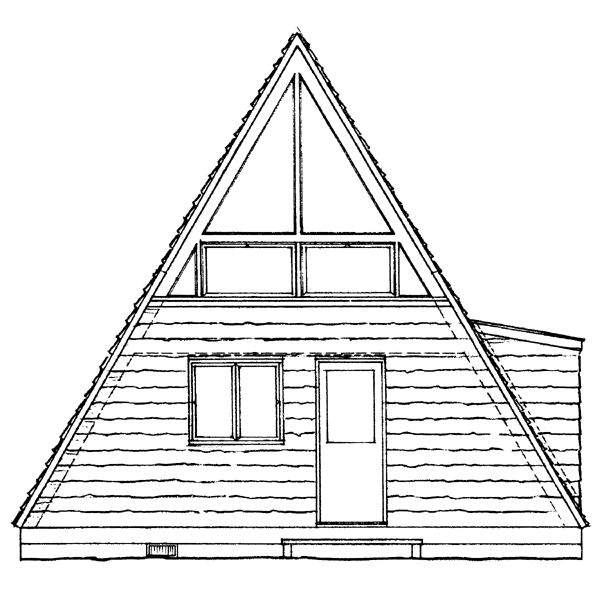

REAR Elevation – westhomeplanners.com
