Plan No.242434

Slab foundation standard, available Crawlspace foundation and Basement foundation (unfinished) $150.00, 2 x 4 stud construction (can be changed to 2x6 for a fee of $250.00), common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans can also be sent to the customer in PDF or CAD (SoftPlan, DWG or DXF)

Specifications

Total 1420 sq ft

  • Main: 1420
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 480

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 51'0
  • Depth: 54'4

Roof

  • Max Ridge Height: 20'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 8/12
Full Rendering – westhomeplanners.com

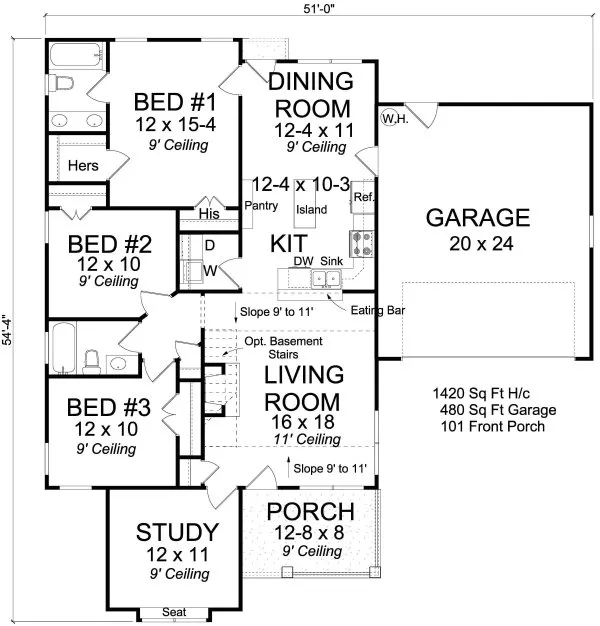

MAIN Plan – westhomeplanners.com
Alt. Rendering – westhomeplanners.com

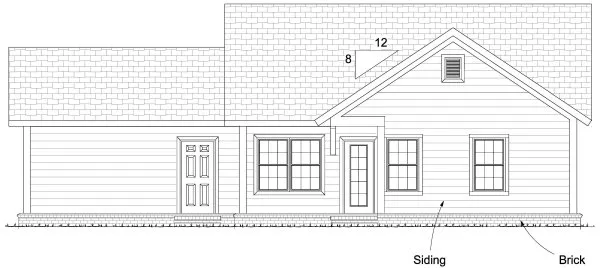

REAR Elevation – westhomeplanners.com
