Plan No.249234

Slab foundation standard, Crawlspace foundation, Basement foundation (unfinished) available for $150.00, 2 x 4 stud construction, 2 x 6 exterior wall conversion available for $250.00, common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans can also be sent to the customer in PDF or CAD (SoftPlan, DWG or DXF)

Specifications

Total 1864 sq ft

  • Main: 1864
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 55'6
  • Depth: 56'6

Roof

  • Max Ridge Height: 23'0
  • Comments: ()
  • Primary Pitch: 8/12
  • Secondary Pitch: 8/12
Full Rendering – westhomeplanners.com

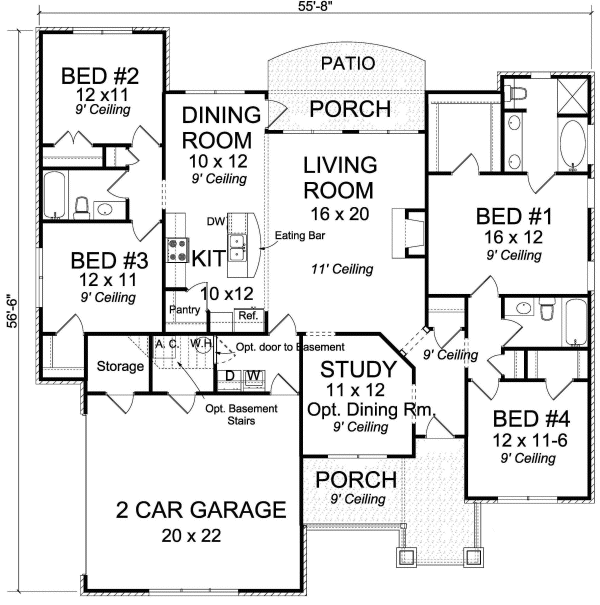

MAIN Plan – westhomeplanners.com
Alt. Rendering – westhomeplanners.com

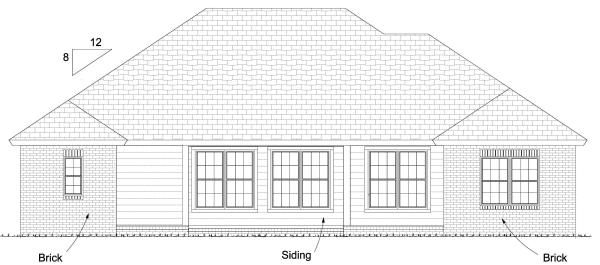

REAR Elevation – westhomeplanners.com
