Plan No.490003

Please note that, upon completion, all future expansion areas would add 810 sq. ft. to the total finished area.

Specifications

Total 4260 sq ft

  • Main: 3030
  • Second: 1230
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 651

Rooms

  • Beds: 5
  • Baths: 4
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 10'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 11'4

Details

  • Exterior Walls: 2x4
  • Garage Type: tripleGarage
  • Width: 67'0
  • Depth: 76'0

Roof

  • Max Ridge Height: 34'0
  • Comments: ()
  • Primary Pitch: 16/12
  • Secondary Pitch: 8/12

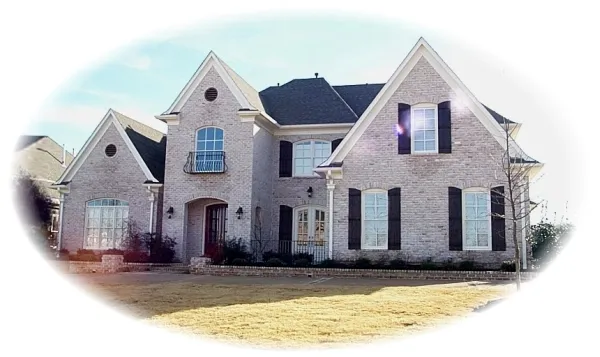

Full Rendering – westhomeplanners.com

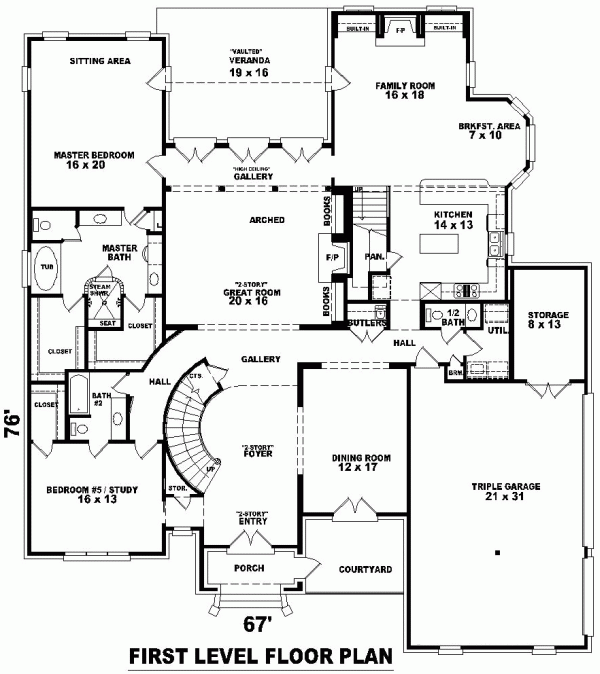

MAIN Plan – westhomeplanners.com

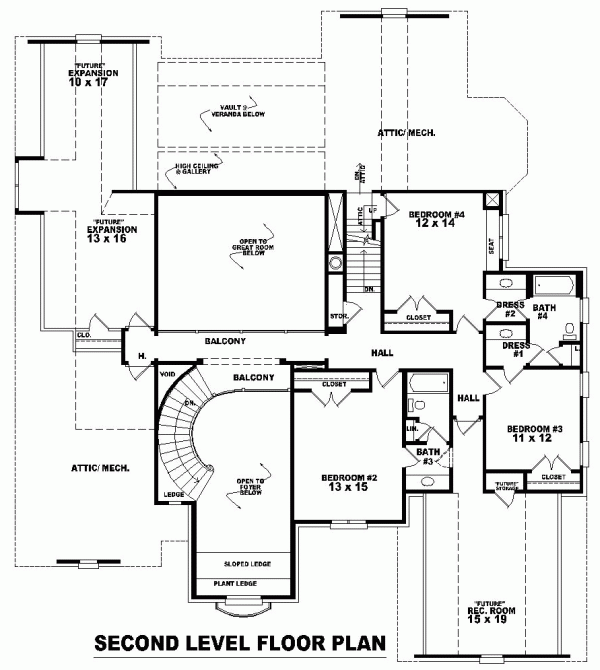

SECOND Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
