Plan No.180742

Convenient Floor Plan

A central foyer leads to a Den/Guest Room with an arched window accented by a vaulted ceiling. To the rear of this home is the Livingroom with 9'-0" raised ceiling featuring a two-sided fireplace. The Master Suite is complete with a large walk-in closet and private Bath with double vanity and whirlpool tub.

Specifications

Total 1636 sq ft

  • Main: 1636
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1636
  • Garage: 454

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0-9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 9'4

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 54'0
  • Depth: 48'4

Roof

  • Max Ridge Height: 22'-0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

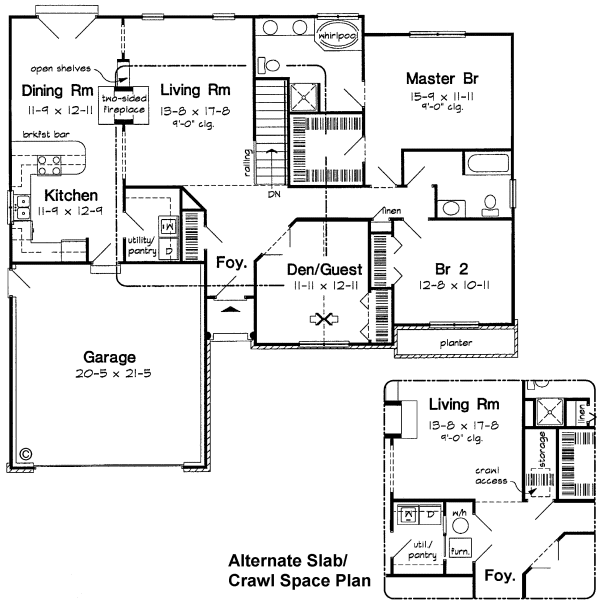

MAIN Plan – westhomeplanners.com

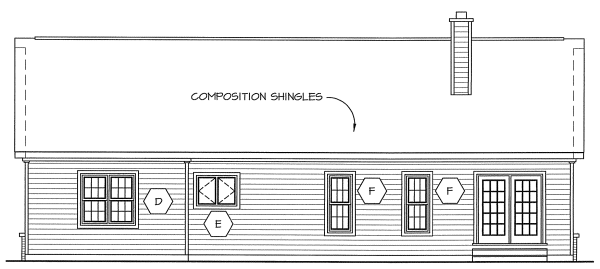

REAR Elevation – westhomeplanners.com

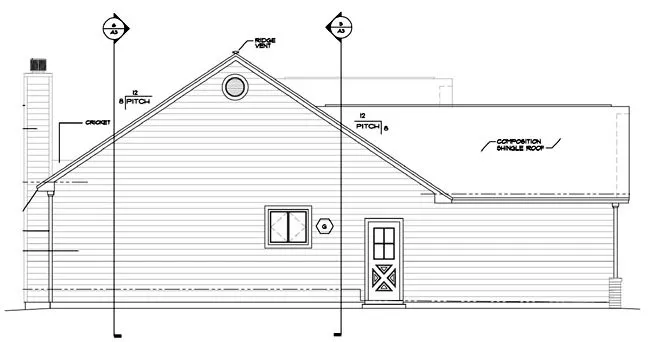

LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
