Plan No.417022

Garage Apartment

This single level garage apartment is ideal for a vacation home, guest quarters or an in-law suite. The breakfast/sitting area provides a cozy place to relax. The laundry area is conveniently located near the kitchen.

Specifications

Total 665 sq ft

  • Main: 665
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 600

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'4

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 17'0
  • Comments: ()
  • Primary Pitch: 6/12
  • Secondary Pitch: 8/12
Full Rendering – westhomeplanners.com

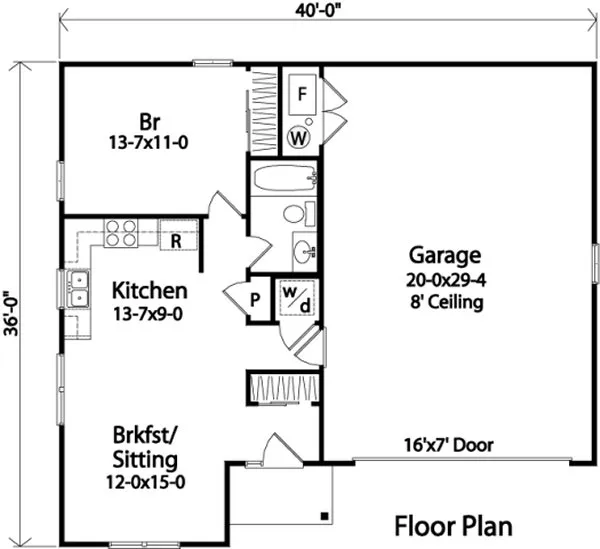

MAIN Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
