Plan No.231127

Design Comments: Family Room ceiling - 10'-10", Living Room vaults to 18'-6", Master Bedroom ceiling vaults to 18'-2", Bonus Room ceiling - 11'-2", and Bedroom 4 ceiling vaults to 13'-2". Please note, the Bonus Room area is not included in the Total Square Footage.

Specifications

Total 4701 sq ft

  • Main: 2980
  • Second: 1721
  • Third: 0
  • Loft/Bonus: 364
  • Basement: 0
  • Garage: 989

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: tripleGarage
  • Width: 82'2
  • Depth: 77'0

Roof

  • Max Ridge Height: 28'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

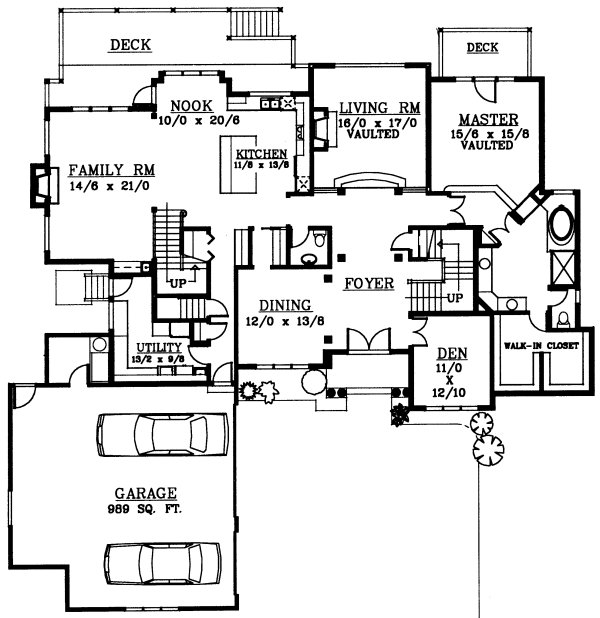

MAIN Plan – westhomeplanners.com

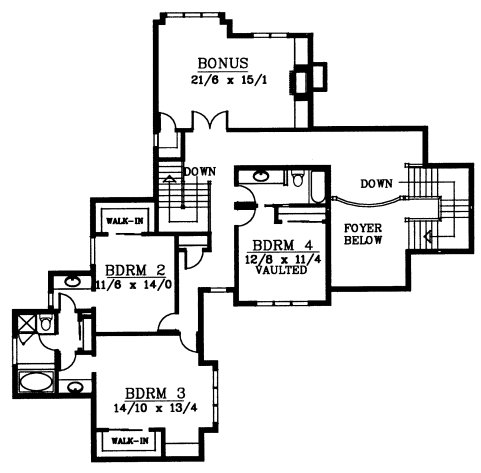

SECOND Plan – westhomeplanners.com

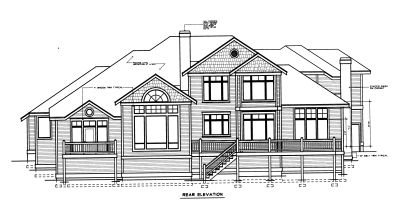

REAR Elevation – westhomeplanners.com
