Plan No.145503

Activity area's ceiling height is 8'8", including living room, dining room and kitchen-dinette. A large landing at the entry. Bedroom with adequate storage and comfortable bathroom with bath and corner shower. Garage with good depth and double garden doors at the rear, giving access to the back. Well suited finished basement with large windows. Laundry facility close to the bedrooms. Each unit has a Main Floor of 1112.5 sq. ft. and a Lower Level of 656 sq. ft. for a total finished area per unit of 1768.5 sq. ft. x 2 = total finished building area of 3537 sq. ft.

Specifications

Total 3537 sq ft

  • Main: 1112
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 656
  • Garage: 456

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 9'4

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 66'0
  • Depth: 36'4

Roof

  • Max Ridge Height: 30'4
  • Comments: ()
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12

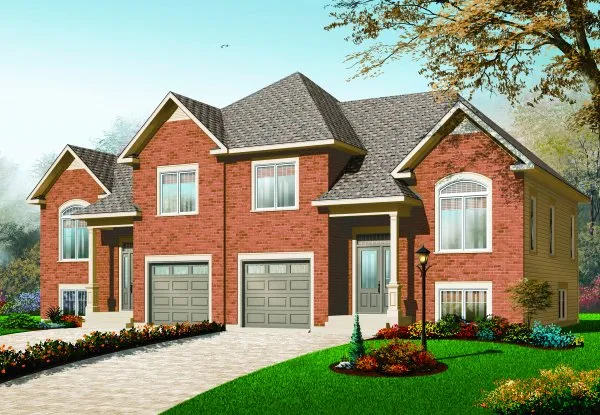

Full Rendering – westhomeplanners.com

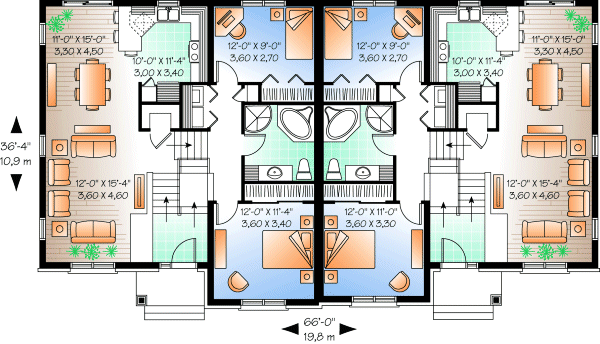

MAIN Plan – westhomeplanners.com

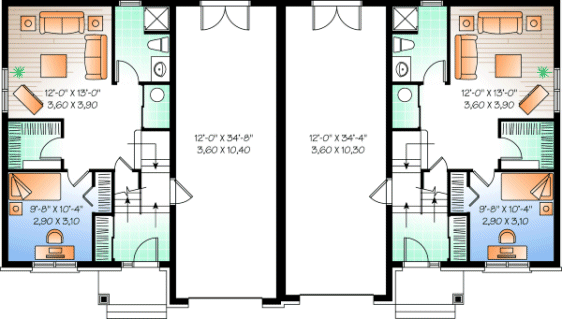

BASEMENT Plan – westhomeplanners.com

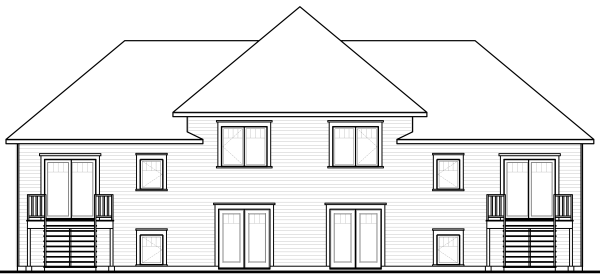

REAR Elevation – westhomeplanners.com
