Plan No.272161

True Classic

This inviting and delightful one and one-half story is a true classic. This home plan was created to offer spacious living within an attractive, compact and affordable design. It includes a basement foundation with a 2-car drive-under garage. The beveled glass front door accents the lovely full-width front porch. The entry area dramatically vaults to 17'. Just beyond is the roomy 18'x15' family room which flows into a 12'x12' dining area. The double windows and French door look out to the 12'x10' deck. The 10'x12' kitchen offers a breakfast bar with a "pass-through". The kitchen ceiling is vaulted to approximately 14' and is brightened by a 2'x4' skylight. All other ceilings are 8' high. Upstairs, you'll find 2 enormous 15'x12' secondary bedrooms. Both have ample closet space and share a compartmentalized bath. The dormers provide additional light and a wonderful location for a window seat.

Specifications

Total 1643 sq ft

  • Main: 1064
  • Second: 579
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 38'0
  • Depth: 34'0

Roof

  • Max Ridge Height: 21'9
  • Comments: ()
  • Primary Pitch: 10/12
  • Secondary Pitch: 0/12

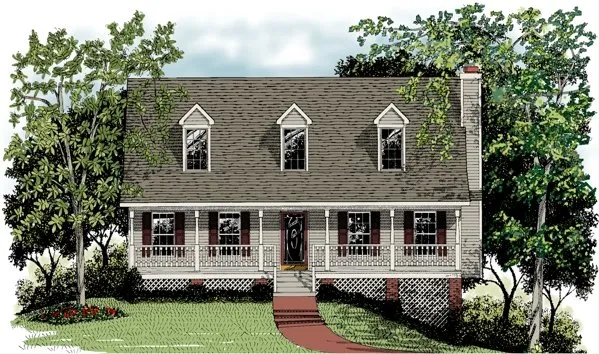

Full Rendering – westhomeplanners.com

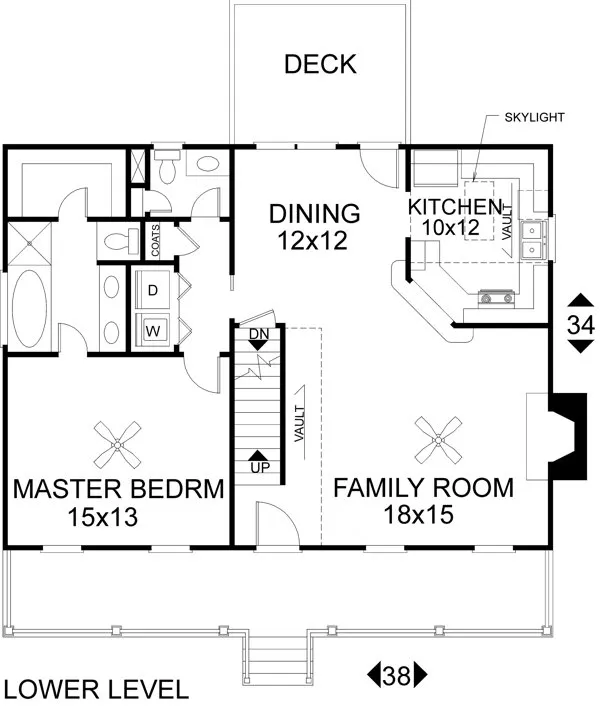

MAIN Plan – westhomeplanners.com

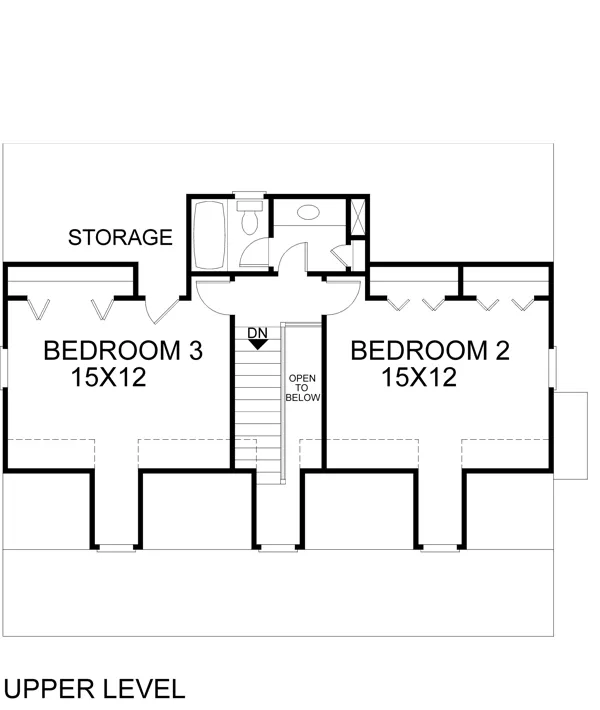

SECOND Plan – westhomeplanners.com

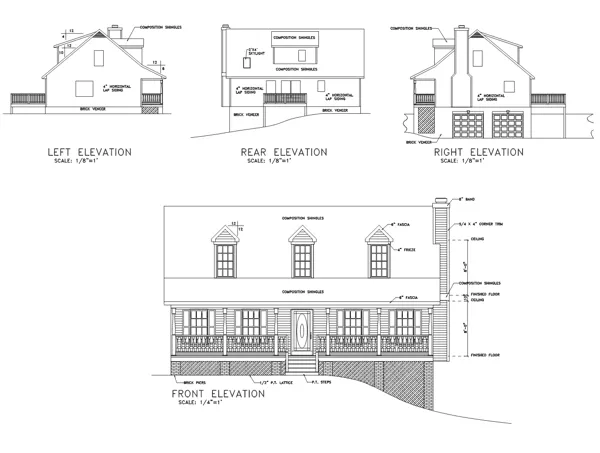

REAR Elevation – westhomeplanners.com
