Plan No.222242

An A-frame For Year-round Living

In this design you have a choice for the master suite location; it could be on the main floor as shown, or you might choose to move it to the upstairs loft. A porch shelters the front door leading to a roomy foyer with a handy coat closet. The central fireplace could be finished in stone to maintain a rustic atmosphere. Plans INCLUDE the Optional detached Double Garage with unfinished loft.

Specifications

Total 1547 sq ft

  • Main: 1086
  • Second: 0
  • Third: 0
  • Loft/Bonus: 461
  • Basement: 1086
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 36
  • Depth: 50

Roof

  • Max Ridge Height: 26'8
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 15/12
  • Secondary Pitch: 22/12
Full Rendering – westhomeplanners.com

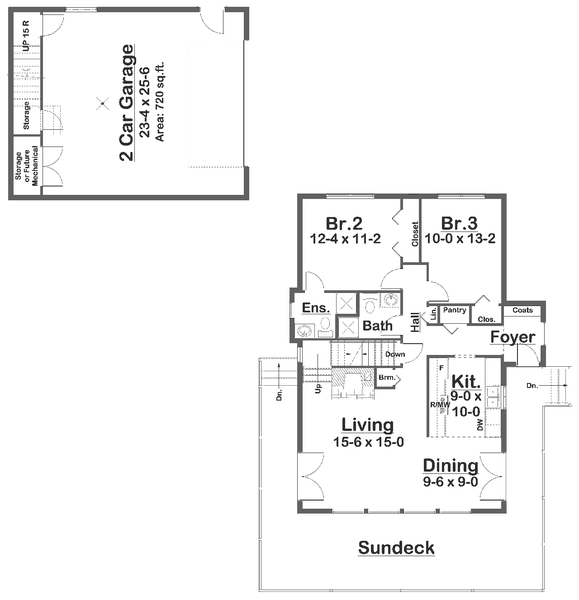

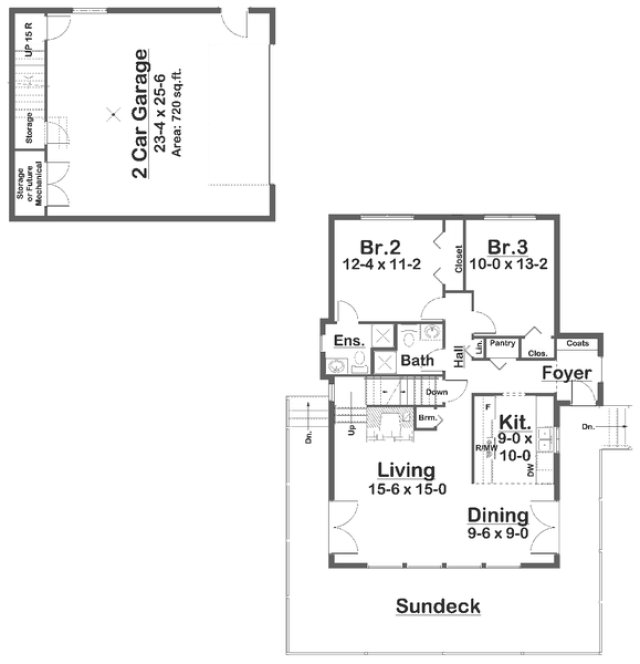

MAIN Plan – westhomeplanners.com

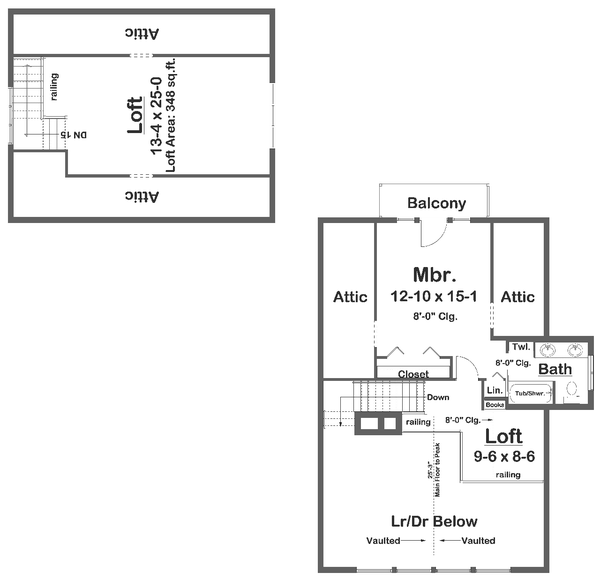

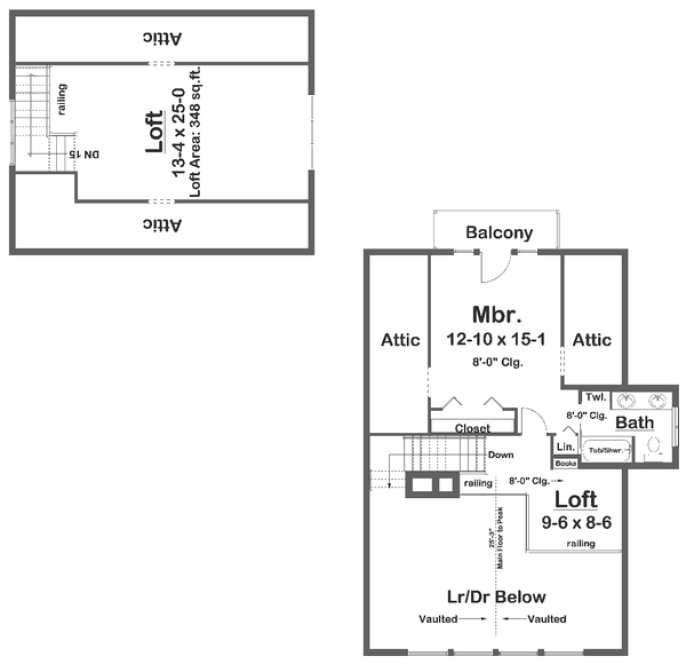

SECOND Plan – westhomeplanners.com

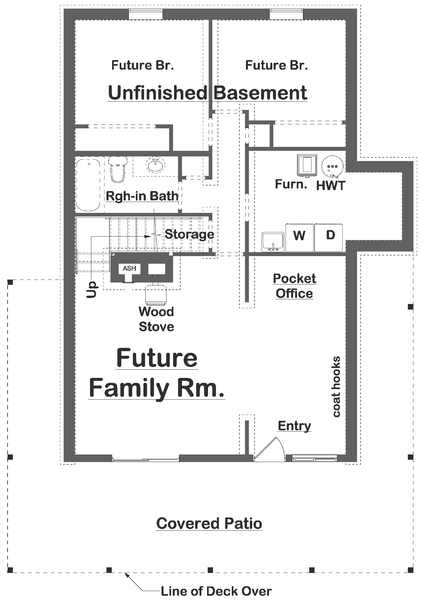

BASEMENT Plan – westhomeplanners.com
Aerial View – westhomeplanners.com
Front & Right – westhomeplanners.com
Left & Front – westhomeplanners.com
Right & Rear – westhomeplanners.com
REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
