Plan No.276152

Simple Elegance

The phrase "simple elegance" best descibes this 2,532 sq. ft. design. The lower level master suite is an often requested feature. Also on the lower level is a 14'x12' study with vaulted ceiling. The oversized living room, measuring 22'x18', is highlighted by a fireplace flanked by doors leading to a 22'x14' patio. A 14'x14' dining room, breakfast room with bay window, gourmet kitchen, laundry room and powder room complete the lower level. Upstairs a dramatic railed overlook leads to two spacious bedrooms, and an optional 246 square foot bonus/bedroom 4. This bonus area provides access to a large storage area which might be used for out-of-season clothes storage or even a retreat. A central hall bath is shared by the three bedrooms.

Specifications

Total 2532 sq ft

  • Main: 1954
  • Second: 578
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1954
  • Garage: 399

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 10'4

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 60'0
  • Depth: 62'0

Roof

  • Max Ridge Height: 32'0
  • Comments: ()
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

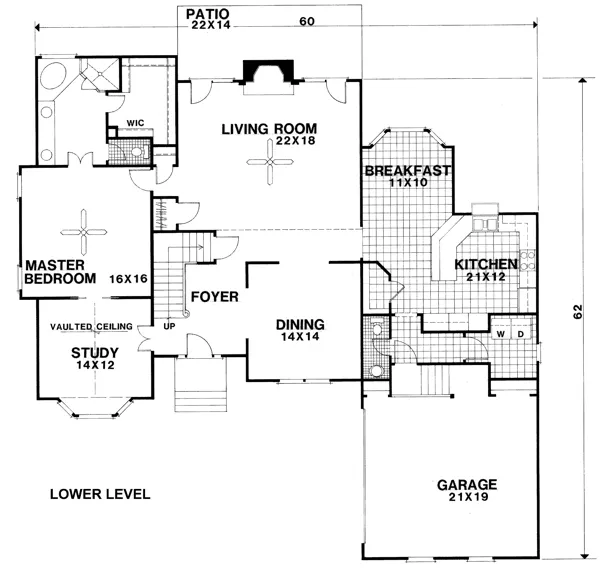

MAIN Plan – westhomeplanners.com

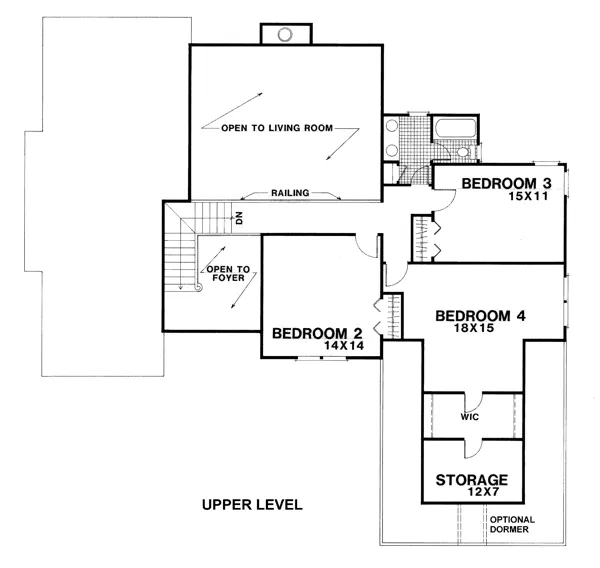

SECOND Plan – westhomeplanners.com
