Plan No.195165

Narrow Lot Duplex

Get the most out of your narrow lot with this craftsman style, three bedroom duplex. This plan features a walk-in closet and en suite in the master bedroom, large secondary bedrooms with extra deep closets, an open living area design, and a functional laundry room. Total Living Area a follows: Main Floor Area - 1410 sq.ft.; Second Floor Area - 1484 sq.ft.

Specifications

Total 2894 sq ft

  • Main: 705
  • Second: 742
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 20'0
  • Depth: 95'0

Roof

  • Max Ridge Height: 25'9
  • Comments: ()
  • Primary Pitch: 5/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com
MAIN Plan – westhomeplanners.com
SECOND Plan – westhomeplanners.com

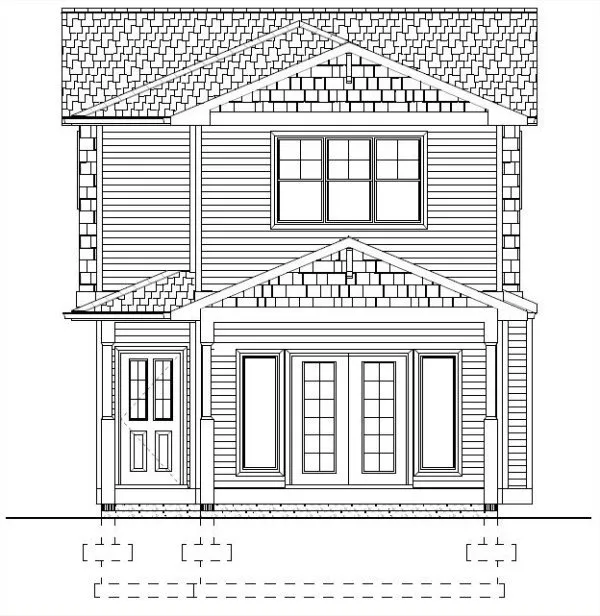

REAR Elevation – westhomeplanners.com

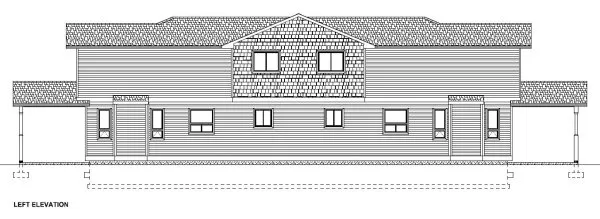

LEFT Elevation – westhomeplanners.com

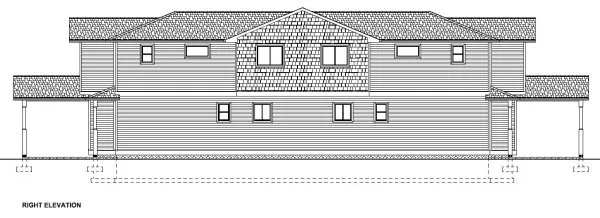

RIGHT Elevation – westhomeplanners.com
 – westhomeplanners.com
