Plan No.101730

Narrow Lot Design Has It All

This villa-style narrow lot design is perfect for a waterfront location. Although only 20' wide, a double garage is included; yet the front facade and approach remain very attractive. Upon entering a spectacular two-storey foyer with curved staircase, one finds easy access to both the large living area and practical kitchen/utility area. Upstairs, the master suite entrance is flanked by ornamental columns which befit a room that boasts a large picture window, luxurious ensuite bath, and huge walk-in closet.

Specifications

Total 1858 sq ft

  • Main: 858
  • Second: 1000
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 822
  • Garage: 371

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 9'4

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 20'0
  • Depth: 62'0

Roof

  • Max Ridge Height: 24'2
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

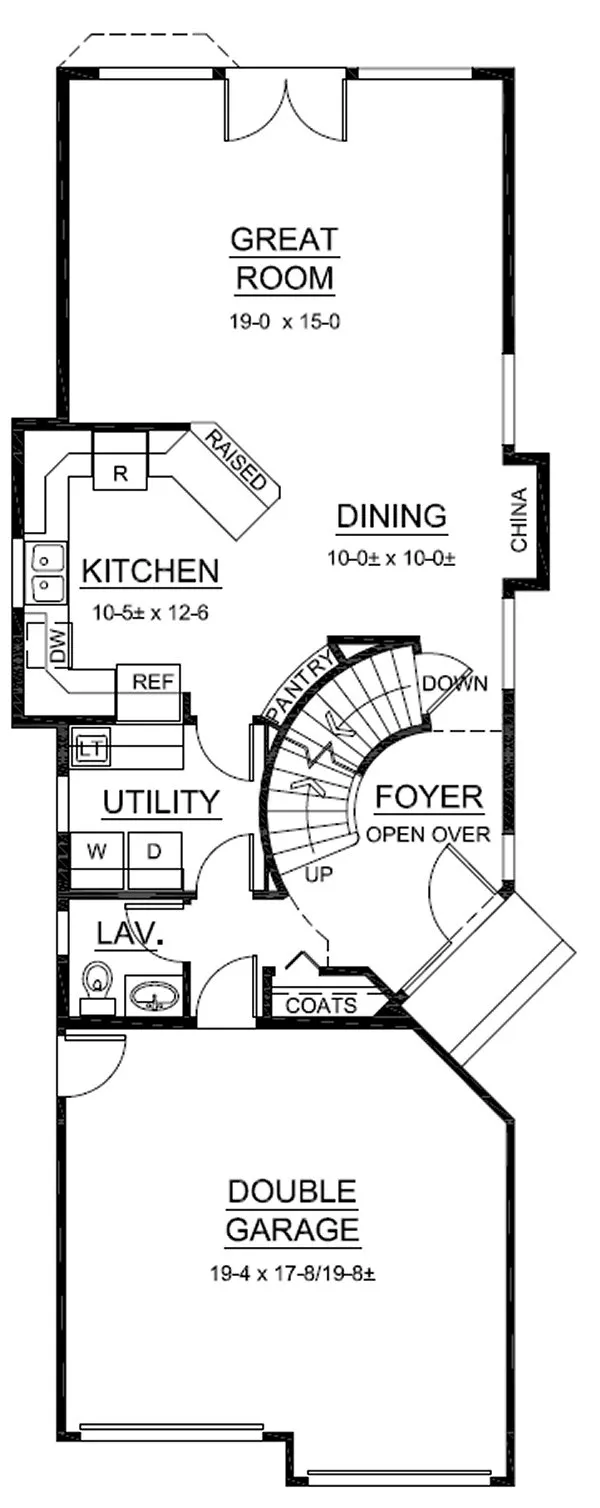

MAIN Plan – westhomeplanners.com

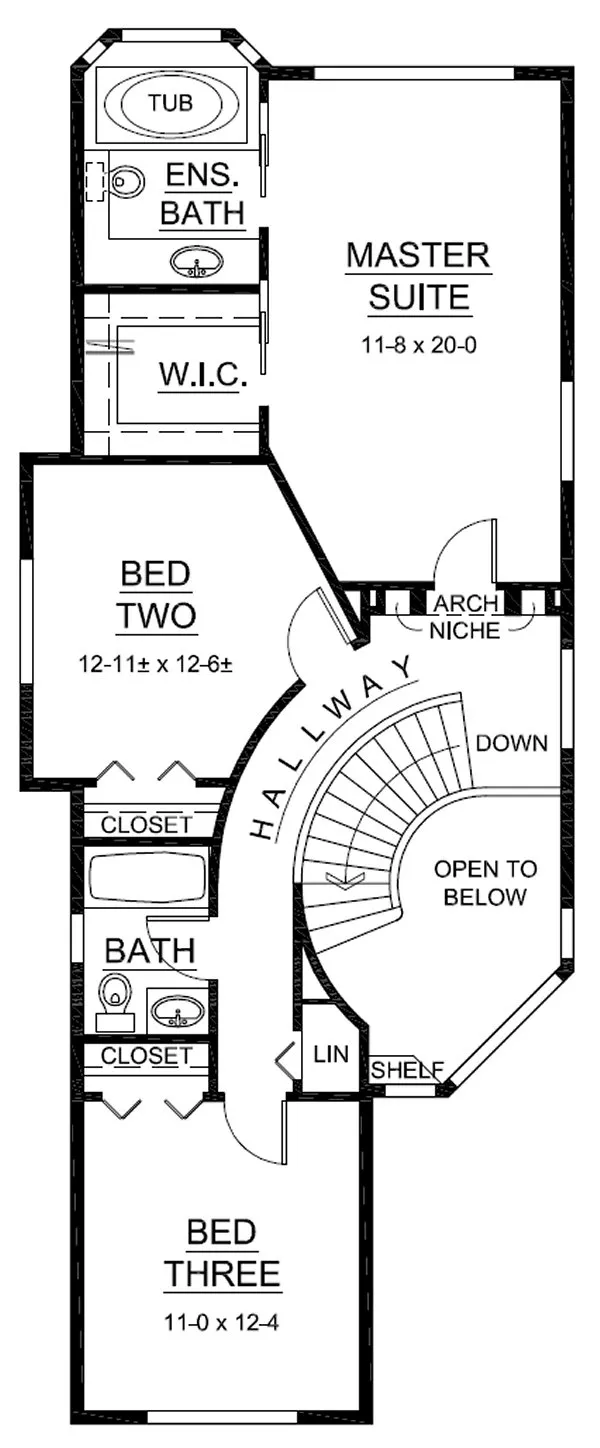

SECOND Plan – westhomeplanners.com

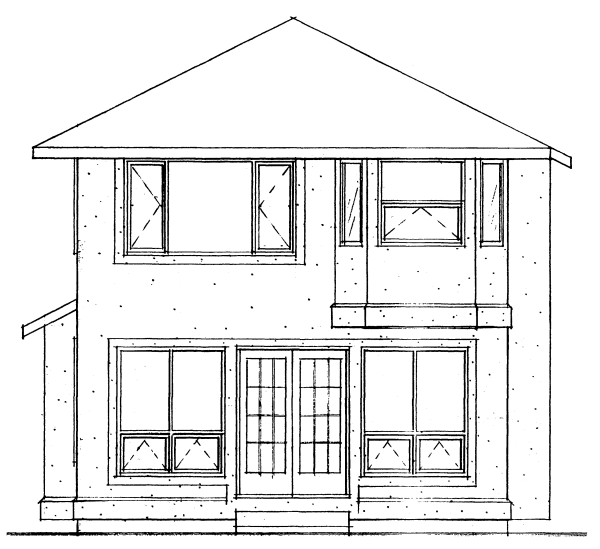

REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
