Plan No.325112

Cozy Vacation Cottage

With the porch entry on the side, a large bay window provides an unobstructed view out the front of this cozy vacation home. The heart of the home is the two-story great room with its fireplace and a wall of windows. The family will want to gather on chilly evenings next to the fire and close to the efficient kitchen. The bedroom and the bathroom are located in the rear of the home to provide more privacy, but remain accessible to all areas of the home. Upstairs a vaulted loft creates an additional area for children to bunk with a closet and built-in desk, all overlooking the great room.

Specifications

Total 981 sq ft

  • Main: 725
  • Second: 256
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 27'0
  • Depth: 39'0

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

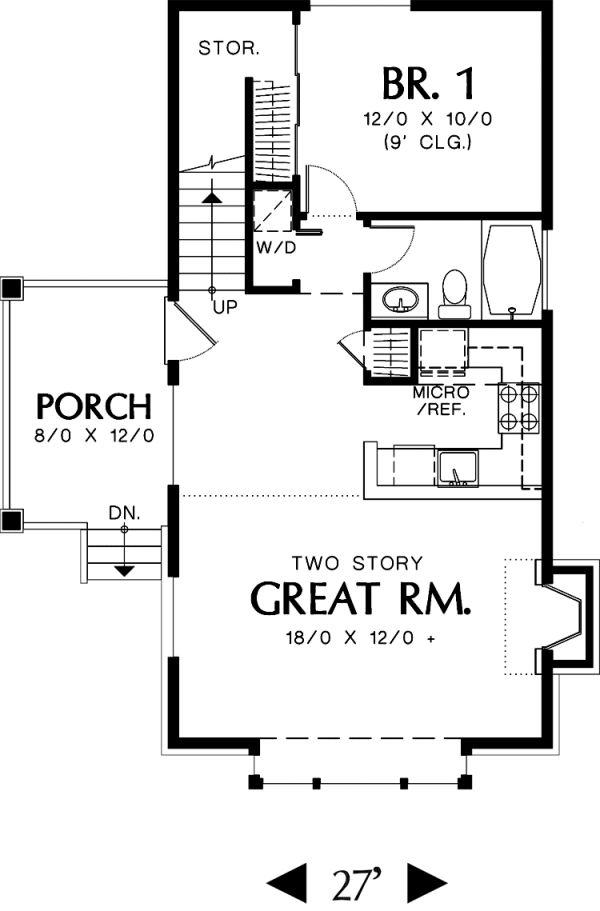

MAIN Plan – westhomeplanners.com

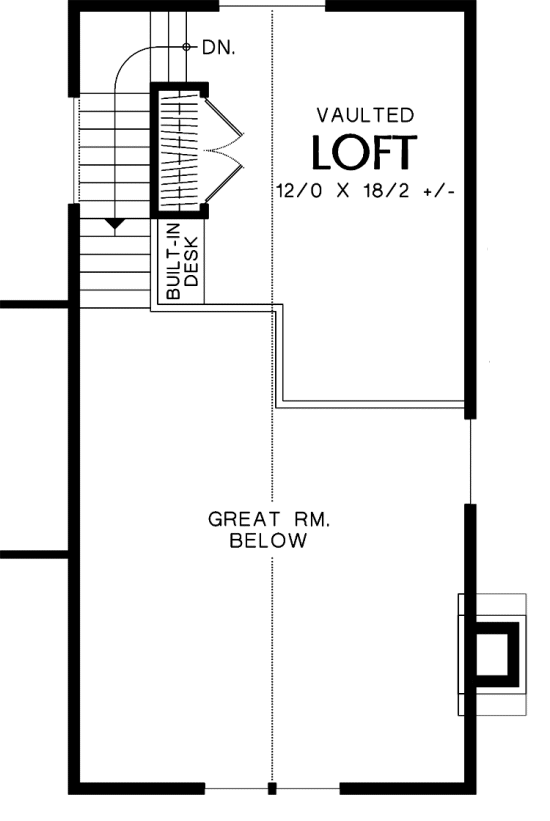

SECOND Plan – westhomeplanners.com

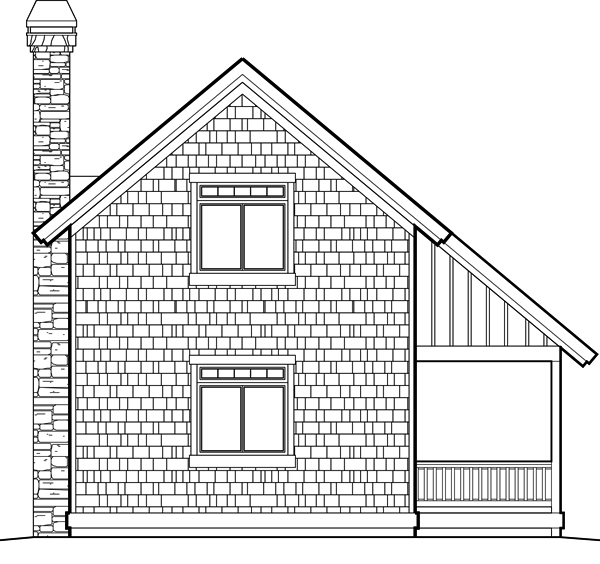

REAR Elevation – westhomeplanners.com
